High Quality Heavy Duty Horizontal CNC Lathe for Turning 45t Cylinder, Steam Turbine

Product Description

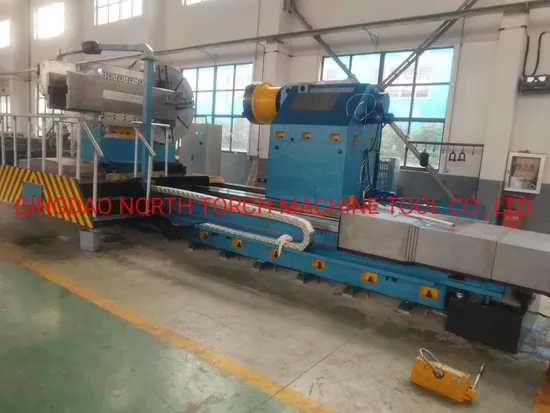

China Professional Heavy Duty Horizontal CNC Lathe for turning 8000 mm length turbine,Cylinder,shaft with 40 T load capacity
The definition of heavy duty horizontal lathe ?
1. It has heavy load capacity, generally it can load above 20 T work-piece, normally the popular load capacity is 45T , such as sugar mill cylinder, roll, turbine, shaft , etc.
2. It has more complex internal strucutre in headstock of horizontal lathe machine, For example: the spindle diameter has more and larger diameter, it has much more bearings and gears in headstock of lathe. All spindle shafts are froged and precisionly machining .
3. The lathe has 4 guide rails with 2000 mm wide. The common horizontal lathe has only 2 guide rails with only 755 mm or 1100mm wide .
4. Tailstock is equipped with a hydraulic clamping system with a pressure display device. It can display the clamping pressure between headstock and tailstock of the heavy duty horizontal lathe machine
5. Tailstock spindle is a special internal built-in rotation spindle with high accuracy and precision, it can be used as both live center and dead center. It can be changed per the user's demands.
Our special features in making heavy duty horizontal lathe machine. Both conventional lathe and cnc lathe are available per customer's request.
1. Headstock is a kind of heavy duty type with more complex structure internally, such as it has more bearings, gears, shafts , the Torque Ratio is much more large than others. So that our horizontal lathe can widly used be turning cylinder, roll, turbine, shaft. etc All or our spindle shafts are froged material.
2. Design a 4 guide rails with heavy load capacity , high rigidity and stability during heavy cutting process. it can be equipped with RENISHAW Measure Decive and grating rulers.

3. Tailstock is equipped with a hydraulic clamping system and pressure display device to display the pressure between centers. It is a very safe protection design, the operator can adjust the pressure according to the data display in the device.
3D Design for each horizontal lathe machine after order confirmation.
Main Technical Parameters of Heavy Duty Horizontal Lathe Machine

CK61 Heavy Duty Horizontal CNC Lathe
	Model	Unit	CK61160	CK61200	CK61250	CK61315
	Brand		NTM	NTM	NTM	NTM
Machining Technical Parameters	Max.swing diameter over machine bed	mm	1600	2000	2500	3150
	Max.swing diameter over cutting tool carriage	mm	1250	1650	2050	2650
	Max.work-piece weight	T	32		63
	Max.work-piece length	mm	4000-20000
Machine Bed Parameters	Guide rail type	Rectangle	4 guide rails
	Guide rail width	mm	1600		2000
Headstock	Spindle speed		Stepless variable frequency
	Spindle speed range	r/min	1-100	1-100	1-100	0.5-80
	Main motor power	KW	45	55	75	90
	Centers	°	75
	Max.chuck diameter	mm	1400	1600	2000	2500
	Max. chuck torque	knm	80			120
Feed Data	Max.X axis stroke	mm	800	1000	1250	1575
	Max.Z axis stroke	mm	4000-20000
	Feed range of X Axis	mm	1-200
	Feed range of Z Axis	mm	1-200
	Rapid moving speed of X axis	mm/min	3000
	Rapid moving speed of Z axis	mm/min	2500
Tailstock	Diameter of tailstock sleeve	mm	300		420
	Stroke of tailstock sleeve	mm	300
	Taper of tailstock sleeve	°	75
	Rapid moving speed of tailstock	mm/min	1500
Other datas	Machine Length	mm	Depends on the work-piece length
	Machine Width	mm	3500	3800	4000	4200
	Machine Height	mm	2300	2600	3000	3500
	Control system		Touch Operation Panel

For More Other Details, please feel free to contact me.
Thank you
