| Technical Parameters |
| Show | 128*64 dot matrix gray screen LCD display, display accuracy: ±0.29%F.S. |
| Processor | Using ARM Cortex M332-bit RISC core |
| Input function | Flow channel: Analog signal: 4 20mA, 0-10mA and other signals; Frequency: Fr (range: 0-5000Hz) |
| Temperature channel: 0-10mA. 4-20mA, Pt100 and other signals |
| Pressure channel: 0-10mA. 4-20mA and other signals |
| Output function | Power distribution output: Provides 1 set of 12VDC and 2 sets of 24VDC sensors, with a maximum output current of 30mA per channel |
| Transmission output: supports 1 standard current 420mA transmission output, load capacity 500 (maximum) |
| Relay output: supports 3 relay outputs, contact capacity 3A@250VAC/3A@3OVDC |
| Communication Interface | Provides two communication interfaces, RS232C and RS485, supporting Modbus RTU protocol |
| Printing interface | RS232C directly connected to micro printer, baud rate 1200 |
| Power supply | 220VAC power supply, 24VDC power supply, 12VDC power supply |
| Working environment | Temperature: 0~50°C Humidity: 0~85%R.H Altitude:<2000m |

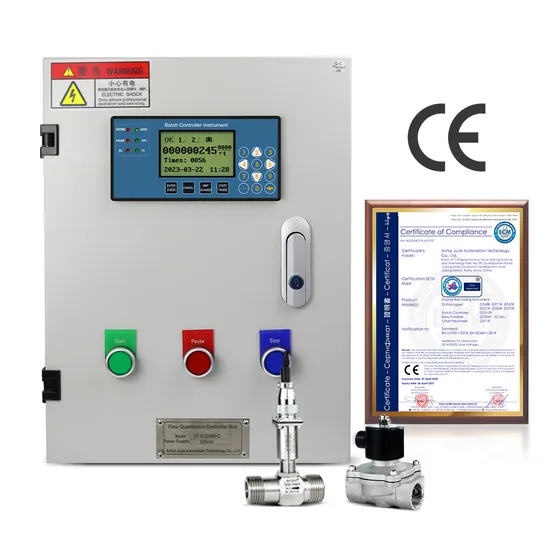

| Size | Large control box size 300* 400 200mm |
| Small control box size 200*300* 150mm |
