Product Description
Product Description

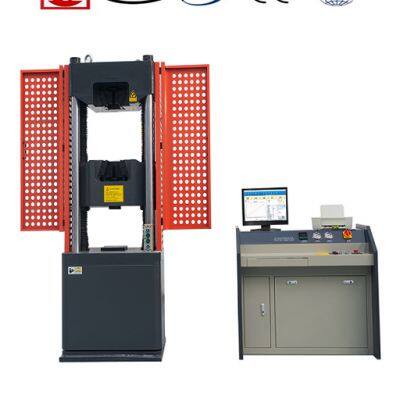

Machine Features:
1. Load measurement: adopting load cell to ensure high accuracy, reliability and consistency;
Load meets or exceeds the following standards: ASTM E4, ISO75000-1, EN 10002-2, BS1610, DIN 51221.
2. Displacement measurement: adopts optical encoder with high accuracy and stability;
3. Strain measurement: Adopt high accuracy electronic extensometer: Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, EN 3846 and EN 1002-4.
4. Compact structure: with dual testing spaces and easy to adjust testing space to carry out different test of varying-length specimens; The machine has four column and two screw with strong stiffness;
5. Clamp automatically: uses hydraulic grips with reliable holding;
6. Multi-protection: protection of over-load by software and hardware; position-limited protection of piston and lower crosshead;
7. Test report can be acquired according to requirements of customers;
8. Management of test data: uses Access, Excel and other such kind software to communicate with testing data base;
9. Stable performance with little influence of temperature and voltage;
10. Multiple Servo control mode：Load (Stress) Control; Displacement (Stroke) Control, Strain (Deformation) Control. Load keeping, Displacement Keeping, Customized programming Control, etc
Main specifications:
Model
Specifications
| WAW-300F
| WAW-600F
| WAW-1000F
| WAW-200F
|
Max. Testing Load (kN)
| 300
| 600
| 1000
| 2000
|
Load resolution
| 1/200000
|
|
Load Accuracy
| ≤±1% from 2% to 100% of full scale
|
|
Displacement Accuracy
| ≤±0.5%
|
|
Displacement resolution
| 0.01mm
|
|
Strain accuracy
| ≤±0.5%
|
|
Strain resolution
| 0.001mm
|
|
Control Mode
| Servo Control
|
|
Load frame Type
| 4-column and 2-screw structure
|
|
Stress rate range
| 1—60（N/mm2）S-1
|
|
Strain rate range
| 0.00025/S—0.0025/S
|
|
Max. tensile space (Including piston Travel) mm
| 600
| 700
| 700
| 850
|
Max. Compression space (mm)
| 550
| 600
| 600
| 750
|
Round specimen grip (mm)
| Ф10-32
| Ф10-40
| Ф13--55
| Ф15--70
|
Flat Sample Clipping Thickness (mm)
| 0-25
| 0-30
| 0-40
| 10-75
|
Ram stroke (mm)
| 200
| 200
| 250
| 250
|
Max. Distance Between Two Fulcrums of Bending Test (mm)
| 400
| 480
| 600
|
820
|
Lifting Speed of Mobile Beams (mm/min)
| 180
|
|
Distance Between Two Column (mm)
| 520
| 570
| 545
| 705
|
Dimensions of the Machine (mm)
| Load Frame
| 750x650x2000
| 800x750x2150
| 900x890x2350
| 1300x1210x3150
|
Hydraulic power pack
| 1050×770×1280
| 1200x600x750
| 1200x600x750
| 1200x600x750
|
Approx. Weight (KG)
| 2000
| 2500
| 3600
| 8600
|
>>
