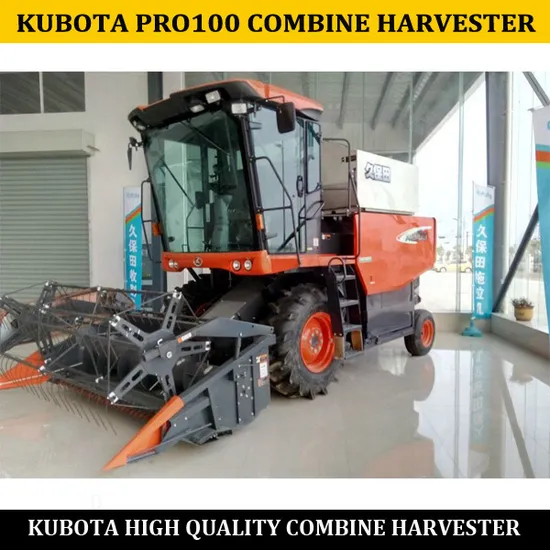

Manufacture of Kubota Comibine Harvester, Kubota Harvester PRO100

Product Description

Product Description
MANUFACTURE OF KUBOTA COMIBINE HARVESTER, KUBOTA HARVESTER PRO100, KUBOTA PRO100
AGRICULTURE MACHINE

MODEL			4LZ-5 (PRO100)
Category			big tank
Structure			Tire self propelled full-feeding
Size	length(mm)( in working)		5900
	width(mm)(in working)		2850
	l height(mm)(in working)		3350
Weight (kg)			4510
Engine	Model		V3800-DI-T-ET13
	Type		vertical 4 cylinder 4 stroke water-cooled turbo diesel engine
	Total displacement (L[cc])		3.769[2434]
	Rated output(kw)		72.9
	Rated speed(r/min)		2600
	Fuel		high quality diesel oil
	Fuel tank capacity(L)		250
Travel unit	Driving wheel (front wheel)	wheel track (mm)	1880
	Steering wheel (rear wheel)	wheel track (mm)	1935
	Transmission mode		mechanical timing+ hydraulic stepless speed changes [HMT]
	Theoretical operation speed(km/h)	forward	0-10.8(working),0-25.56(walking)
		backward	0-3.24(working),0-7.2(walking)
Harvest unit	The smallest stubble height(mm)		40
	Feeding in speed(kg/s)		5
	Lodging adapation (degree)		Shun-cut:< 85°, Against the cut:< 70°
	Threshing cylinder	Diameter × width(mm)	Φ620 × 2210
		Rotational speed(r/min)	wheat:825, rice:730
Grain discharge unit	Grain Tank Capacity (L)		2400
	Unloading	Type	Hydraulic dump tilting
		Direction	right side of the body
	Height of discharger(mm)
Warning lights and equipments		Vertical transmission filler and then plug screw rob cereal	○
		Sets valley box filled with	○
		Water temprature	○
		Battery charging	○
		Engine oil pressure	○
Suitable crops			rice / wheat
Operational efficiency hm2/h)			wheat:0.5-0.8 rice:0.3-0.5(in up-right grain and dry land)

TRADE ITEM:

MOQ		1 UNIT
Delivery Time		2 weeks from the date of signing the contract and receiving advance payment.
Payment Item		T/T for 30% advance payment and 70% balance payment before shipment
Container loading		3 sets in a 40' container
Terms of Shipment		FOB
Port of Shipment		Main Port, china
Date of Shipment		To be discussed later
remark	2. Some terms may be amended according to your demand!
	3.If quantity large, we can talk about price again and give you some discount.
	4. We will be very appreciated if you can confirm our quotation and sign it back once you have.

ADVANTAGES:
1.With the help of Synchro-Shuttle system located under the steering for ease of operation, KUBOTA L Special
tractor can be switched between forward and reverse without stopping. These features make gear shifting
easier, smooth operation and powerful agility.
2.KUBOTA L Special tractor has a great balance between weight, ground clearance and horse power which help you to work in any puddle or cross ridges.
3.With 8 forward, 8 reverse speeds and the proper set speed for each gear, KUBOTA L Special tractor s speed can be chosen to suit with various implements.
4.Two selectable PTO gear speeds; 540 and 750 rpm*, allow you to choose the right speed to suit various working conditions, including soil pulverization by rotary and atomized spraying by boom sprayer.
MAIN PRODUCTS:
We are YANCHENG FOREIGN MACHINERY PARTS CO., LTD.
We specialized in kubota spare parts, kubota machine ( kubota harvester, kubota transplanter,
kubota tractor).
MACHINE MODEL: 488, 588I, 688Q, 788, 888, DC60, DC68G, DC70, DC95, 704K, 854 ,954,
1004, NSPU68C, NSPU88C, SPW48/68C
KUBOTA machine and Spare Parts are popular in Philippines, Tailand, Vietnam and Sri Lankaand other countries. So glad to talk with you about Different Kubota machines and Spare Parts. Company Profile
COMPANY ADVANTAGES:
1. Have rich experience in the machinery parts
2: 10 years research and testing ,It have formed mature and stable system.
3:exporrting more than ten years .
4: Able to produce according your specification .
5: Standard packing or according your specification requested

Company	Manufacture (more than 10 years' experienced factory) exporter
Main export markers	• Easter Europe • Western Europe • North America • Mid East Africa • Central/South/America • Asia • Australia Long-term cooperated Customer: Italy, Germany, Spain, Australia ,Thailand,VN etc.
Company advantages	• Guarantee/warranty • Product performance • Prompt delivery • Quality approval • Service • Small order accepted

Contact:
Yancheng Foreign Machinery Parts CO.,LTD
Add:4F,no.321,south tongyu road,Yancheng,Jiangsu,China
Tel:0086-515-89871690
Fax:0086-515-89871680-8
Moble/: 0086-15151079214
Http://foreignmachinery.en.made-in-china.com
Http://foreignmachinery.en.made-in-china.com

---
