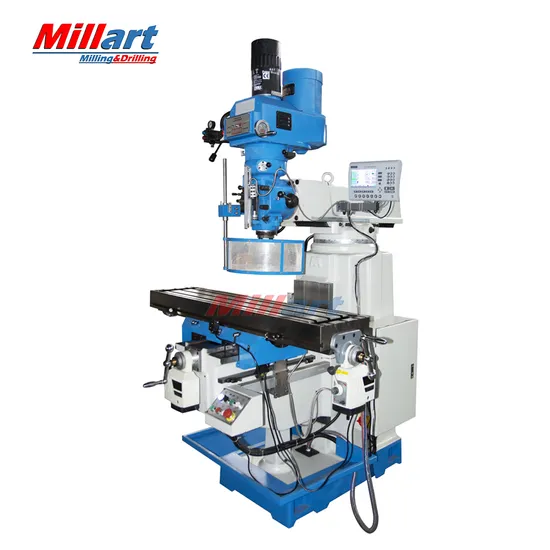

X6330 Metal Vertical Turret Universal Mill Machine

US$2,800.00-3,800.00 1 Piece (MOQ)

Basic Info.

Model NO.

X6330

Type

Worktable Milling Machine

Object

Tool

Structure

Lifts

Milling Cutter Type

Vertical Milling Cutter

Milling Cutter Structure

Indexable Type

Controlling Mode

Artificial

Automatic Grade

Semiautomatic

Precision

High Precision

Certification

GS, CE, RoHS

Condition

New

Table Size

305*1370

Long Travel(mm)

870

Cross Travel(mm)

360

Transport Package

Wood Case

Specification

CE ISO9001

Trademark

L&T

Origin

Tengzhou China

HS Code

84592900

Production Capacity

200PCS/Month

Product Description

X6330 Metal Vertical Turret Universal Mill Machine
Features:
1.Turret Milling Machine has reasonable construction and superior machining functions such as drilling, boring, milling of plane, inclined plane and slot, and such functions available by use of the corresponding attachments as milling of helix slot, round surface, rack, gear and spline
2.High speed milling head from Taiwan
3.Harden the slide way and table surface
4.The slide way have been precision scraped by hand. Which could keep high precision and smooth moving
Technical parameter:

Model	X6330
Table size	305*1370
Long travel(mm)	870
Cross travel(mm)	360
Vertical travel(mm)	380
T-slot No.and size(mm)	3*16
Ram travel(mm)	500
Distance from spindle nose to table (mm)	0-350
Spindle hole taper	NT40
Spindle quill travel(mm)	127
Quill diameter(mm)	105
Spindle speed(r.p.m)	70-3600 Variable
Auto.quill feed	Three steps: 0.04/0.08/0.15mm/r
Spindle motor	3.75kw/5hp
Head swivel	90°
Head tilting	45°
Dimensions of package	156616502080
G.W/set	1600

Standard accessories:

Collets chuck sets	Oil tray
Drill chuck	Coolant system
Draw bar	Lubricating
Reduction sleeve	Tools and tool box
Work lamp

Optional accessories:

3-axis DRO	Machine vise
X power feed	Clamping kit
Y power feed	Air draw bar
Z axis motorized lifting	Spindle variable speed
