Industrial Plastic Shredding Machine Single Shaft Shredder

Product Description

Cheap China Super Good Single Shaft Shredder For Plastic Recycling
Product Description

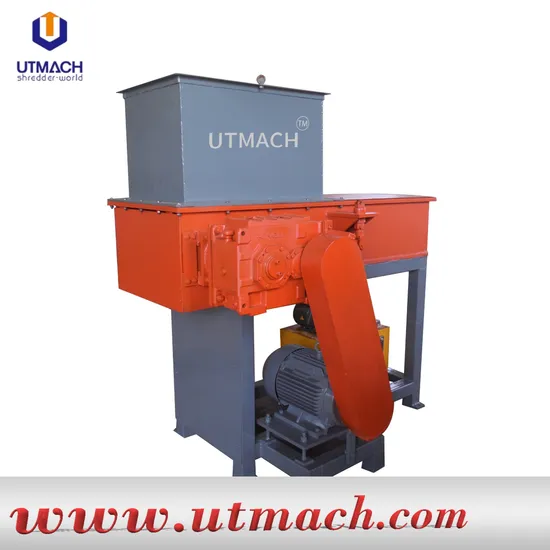

S Series Single Shaft Shredders from Zibo United Tech Machinery Co., Ltd. are versatile size reduction machines suitable for processing a wide range of materials to a uniform particle size.
Single shaft shredder is available to recycle wide range of material. It is an ideal machine for plastic, paper, wood, fiber, rubber, organic waste a wide variety of non-metallic materials. As per our customer's requirements, such as the input size of materials. Capacity and the final output size etc. We could work out a suitable proposal for our clients. After being shredder by the machine, the output material could be used directly or go int to the next step of size reduction.
With the function of PLC system, it is possible to control automatically start, stop. Automatic reverse sensors to protect the machine against over loading and jamming. Throughputs typically range between 300kg/hr - 15,000kg/hr+ depending on the model, material type and application.
We have special models are available for specific applications such as pipes and other bulky materials shredding.
The wide range of machine sizes and various configurations guarantees optimum performance in every application.
Single shaft shredders can either be feed manually or bulk loaded using materials handling equipment. Various options are available for transporting materials to and from the shredders including belt conveyors, screw conveyors and air extraction systems.
Plastics - Various rigid and flexible plastics including Mouldings, Purgings/Lump, Profiles, Films etc. Timber/Wood - Pallets, Joiners Waste, Green Waste etc. Paper & Cardboard - Confidential Documents, Production Waste, Packaging Materials etc. Rubber - Skeletal Scrap, Production Waste etc. Non Ferrous Metals:- Copper Cable - Household, Telecoms and Industrial Cables including S.W.A. Aluminium - Used Beverage Cans (UBC's), Swarf, Cables etc. Textiles - Carpet (Rolls & Tiles), Garments etc. Security Destruction - Counterfeit Items, Faulty Goods, Out of Date Stock etc. Foam - Production Waste etc. Mixed Household & Commercial Waste - RDF/SRF Production

Model	S2260	S3060	S3080	S4080	S40100
Dimension L/W/H (mm)	1780*1290*1690	2455*1478*1700	2455*1678*1700	2825*1747*1875	2825*2004*1875
Cutting Chamber Size (mm)	790*600	1200*600	1200*800	1400*800	1400*1000
RAM (mm)	500	600	800	800	1000
Rotor Blade Diameter (mm)	220	300	300	390	390
Rotor Ratate Speed (r/min)	80	80	80	80	80
Motor Power (kw)	18.5	22	30	37	45
Pushing Device Power (kw)	1.5	2.2	2.2	2.2	5.5
Net Weight (kgs)	2400	2600	2950	3500	4000
Model	S40120	S40150	S48150	S48200	S48250
Dimension L/W/H (mm)	2825*2564*1875	2825*2964*1935	3255*4415*2720	3255*4415*2720	3255*4615*2720
Cutting Chamber Size (mm)	1400*1200	1400*1500	1650*1500	1650*2000	1650*2500
RAM (mm)	1200	1500	1500	2000	2500
Rotor Blade Diameter (mm)	390	390	480	480	480
Rotor Ratate Speed (r/min)	80	80	80	80	80
Motor Power (kw)	55(30+30)	75(45+45)	110(55+55)	75+75	90+90
Pushing Device Power (kw)	5.5	5.5	5.5	5.5	5.5
Net Weight (kgs)	5000	6200	8000	11000	12500

Note:
The voltage about the power supply can be selected by the customer's specific requirements. The shredder capacity can be influenced by the material compostion and output size. The above specifications are only for reference and subject to change without prior notice, please confirm with our sales representative when making order. (1) Your inquiry related to our products or prices will be replied in 12hours. (2) Our engineer will make machine placement chart according to client's workshop chart
(3) We provide 12 months guarantee since the date of bill of loading. All products are passed strict test.

---
