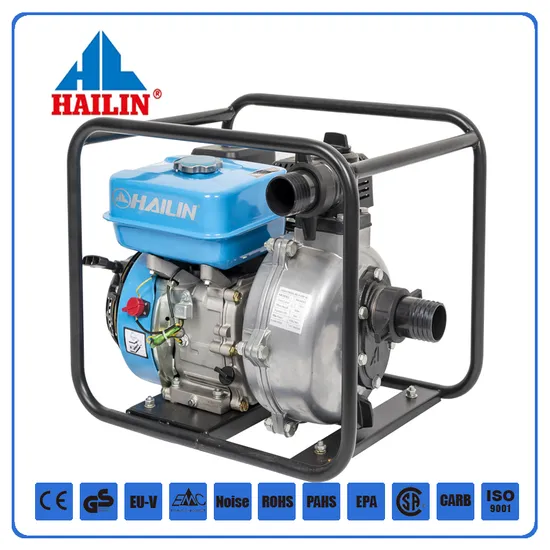

1inch 2inch 3inch Water Pump Kit, High Pressure Pump End

Product Description

Product Description

Model		HP40/ 1.5 inch		HP40-2/ 1.5 inch		HP50/2 inch
Inlet inch (mm)		1.5"(40mm)		1.5"(40mm)		2"(50mm)
Outlet inch (mm)		1.5"(40mm)		1.5"(40mm)		2"(50mm)
Max.head (m)		55		80		50
Suction lift (m)		5		5		5
Max.flow (L/min)		450		300		450
Pump body		Aluminium alloy		Aluminium alloy		Aluminium alloy
Impeller		Aluminium alloy		Aluminium alloy		Aluminium alloy
Mechanical seal		Carbon-Ceramic		Carbon-Ceramic		Carbon-Ceramic
Driving power (KW)		5.2		4.8		5.2
Working speed (rpm)		3600		3600		3600
Dimension (mm)		265*250*280		265*250*280		365*305*240
Weight (kg)		5KG		6.5KG		10KG

High pressure pump
Pump body, diffuser and impeller made by strengthen aluminum alloy, light and portable.
Has triple outlet (1.5"x1, 1"x2) for two kinds of performance.
High quality ceramic mechanical seal.
Optional puly with support for various application.
Optional single impeller, twin impeller. brass impeller, aluminum impeller. Detailed Photos
High pressure pump
Pump body, diffuser and impeller made by strengthen aluminum alloy, light and portable.
Has triple outlet (1.5"x1, 1"x2) for two kinds of performance.
High quality ceramic mechanical seal.
Optional puly with support for various application.
Optional single impeller, twin impeller. brass impeller, aluminum impeller.
Company Profile
Fujian Hailin Group was founded in 1999. Equiped with advanced production lines for casting, metal plate processing, maching and coating, Haiin is a modern enterprise that intergrates scientific research and development, production, sales and service, and import and export trade of water pump set and water pump, diesel generators. As one of the leading company in terms of company scale, technical strength and product quality within the industry, Hailin has gained its stable customers basis like HONDA, SAWAFUJI, HITACHI, and other international well-know companies with a series of related certification including ISO9001, EPAIII, EU-V, CE, EMC, ROHS.
