Windmill Home Use Hybrid Power Generation Energy Systems 10kw 20kw 30kw

Product Description

10kw wind turbine 7.5kw 10kw low noisy vertical axis factory wind generatorSpecification Sheet

Model	WT02-20KW
Rotor diameter	6m
Height of blade	9m
Material of blades and numbers	Glass fiber reinforce plastic/5
Rated rotor speed	100r/min
Output voltage	110V/220V
Start up wind speed	3.8m/s
Rated wind speed	13m/s
Work speed	3.8-25m/s
Security wind speed	50m/s
Height of tower	10-12m
Top weight except tower	2100kg
Tower type	133mm steel tube
Wind energy utilized coefficient	30%-40%
Suggested batteries information	36pcs 12V 200AH
Speed regulation method	electromagnetic control
Range of working temperature	-45ºC-60ºC

Advantages of vertical wind turbines1)maglev generator Coreless generator, generating efficiency.2)3 blades with curved design,low start spped, low noise.3)Small ,light ,stable and safe, special control principle expended the wind speed to 2.5 ~ 25m/s.4)High efficiency, matching with hybrid generator system with solar panels for home use, LED street light, Garden lights, boat,camping etc.
,
Wind generator> Type:3phases permanent magnetism synchronization generator> Protection:Electromagnetic torque control and electricity brake> Blade material: Extra-strong fiber glassWind controller
>Ws5kw/96v wind charger controller
>Wind Turbine Maximum Input: 100A
>Unload Voltage(factory default): 112V
>Unload Current(factory default): 50AGel Battery>Capacity:12V/200AH full sealed
>Solar power Gel battery,
>Service life:6-8 years ,
>Size: 522*240*219mmPure sine wave Inverter
>Inverter:3KW96VDC
>110V/120V/220V/230V/240VAC output,
>City power and generator charger build in Overload,
>overcharge, over-discharge protection Mounting structure> Slope Roof or Flat roof or Ground (option)
> Including complete fittings
> Wind load:55 m/s,snow load:1.5 kg/m2
> Structure: Anodized Aluminum +stainless steel, Angle adjustable(other type of rack can be customized as per client's requirement )

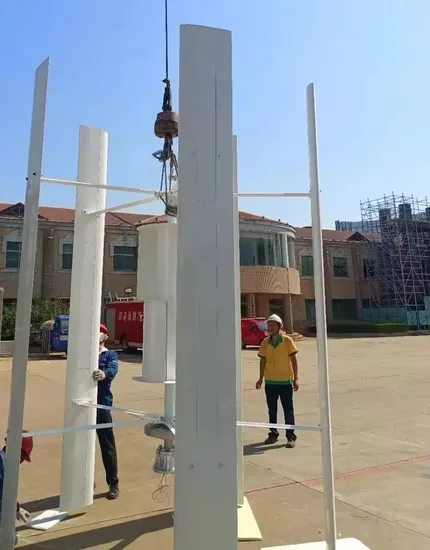

Install projetcs:
Should you have any request, just feel free to me!Shenzhen ENM Electronic Technology Co.,Ltd
