Pege Rubber Strip Cutting Solution for Fast and Accurate Results

Product Description

Experience the unrivaled efficiency of our PEGE Rubber Strip Cutting Solution, a marvel of engineering crafted meticulously for precision in cutting rubber strips. This innovative tool redefines the standards of accuracy and speed in rubber cutting technology.

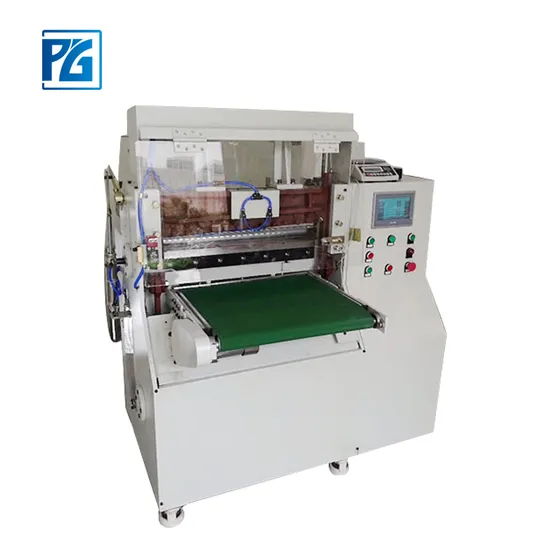

Machine Picture
Main Features Our Numerical Rubber Cutting Machine boasts a top-tier brand PLC, ensuring unparalleled precision and swift responsiveness, elevating your cutting operations to new heights of excellence. Showcasing a state-of-the-art branded servo motor, our advanced feeding system delivers remarkable accuracy, stability, and longevity. Featuring a feeding precision of ±0.1mm and an impressive weighing precision of ±0.2g for cut lengths under 20mm, it ensures superior performance with every cut. The machine's main power source, a robust 3-phase slowdown brake motor, combines formidable strength with exceptional safety, providing reliable and secure operations. Integrated with imported fiber sense positioning components, our machine stands out for its exceptional accuracy and remarkable durability, making it a reliable partner in your production. Powered by a chain belt system, this formidable machine effortlessly processes FKM sheets with a hardness rating reaching up to 90ºC with remarkable ease and precision. The user-friendly 7-inch HMI touch screen offers automatic counting, continuous monitoring, and warning alerts, simplifying operation and enhancing user experience with seamless control. A high-quality brand inverter governs the cutting speed, facilitating direct adjustments to amplify efficiency and productivity. Our innovative safety door mechanism at the strip outlet employs a dual protection system, maximizing safety during operation and ensuring peace of mind. The automatic material press system significantly reduces operator workload, adding convenience and fostering a comfortable working environment. Fitted with robust Tungsten steel W18 blades, the cutting blade guarantees outstanding durability and extended service life, ensuring consistent performance over time. The cutting blade's ingenious bevel cut design minimizes resistance and maximizes cutting speed. The precisely aligned upper and lower blades work in harmony to reduce abrasion and ensure superior cutting quality. Our customizable models come with slitting cutters suited for both horizontal and vertical rubber sheet cuts. The design facilitates easy replacement and maintenance of the slitter cutter blades, enhancing operational efficiency.. The cutting-edge oil lubricant system, driven by an automatic electromagnetic pump, minimizes operational interruptions by refilling oil automatically, ensuring smooth and continuous operation. Our CNC rubber cutting machine exemplifies user-friendly design and advanced manufacturing, promoting efficiency and ease of use for operators at all levels.Adjusting length or cutting speed is a breeze with the intuitive touch screen controls, allowing seamless operation and real-time customizations for optimal performance. Product Parameters

Technical Data of Rubber Strip Cutting & Slitting Machine
Model	PG-HA-600	PG-HA-800	PG-HA-1000	PG-HVG-600
Size	1170*1300*1400	1170*1500*1400	1170*1700*1400	1170*1300*1400
Weight	900kg	1100kg	1300kg	900kg
Cutting Direction	Horizontal	Horizontal	Horizontal	Horizontal& Vertical
Cutting width	≤580mm	≤800mm	≤1000mm	≤580mm
Cutting Length	0.1-1000mm	0.1-1000mm	0.1-1000mm	0.1-1000mm
Cutting Thickness	≤30mm	≤30mm	≤30mm	≤30mm
Blade material	Tungsten Steel W18	Tungsten Steel W18	Tungsten Steel W18	Tungsten Steel W18
Feeding mode	Servo motor	Servo motor	Servo motor	Servo motor
Cut Speed	≤80/min	≤80/min	≤80/min	≤80/min
Power supply	4kw 3ph 380v	4kw 3ph 380v	4kw 3ph 380v	4kw 3ph 380v
Speed Control	PLC& Inverter	PLC& Inverter	PLC& Inverter	PLC& Inverter
Operation Mode	Touch Screen	Touch Screen	Touch Screen	Touch Screen

Applications:
Expertly engineered to transform rubber sheets into precise strips, our machine delivers remarkable speed and efficiency, revolutionizing rubber cutting operations.
PACKING
SHIPPING

---
