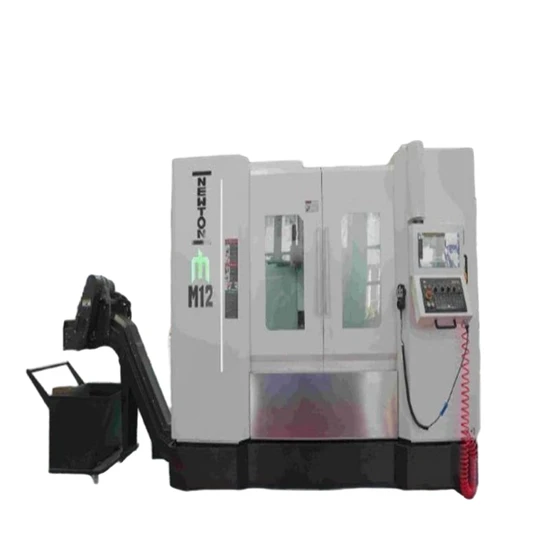

Suji CNC Vertical/Horizontal Milling/Turret/Drilling/Boring Cutting CNC Machine/Machinery/CNC Machine Vmc1580s

Product Description

Company Profile
Suji Intelligent Equipment Jiangsu Co., Ltd. was established in 2018, which is located in Jiangsu Shuyang National Economic Development Zone. Mainly engaged in CNC machine tools, vertical machining center, development, production, research and development, sales and service as one of the comprehensive science and technology enterprises. The company has a professional technical team dedicated to the field of CNC machine tool manufacturing and service, set many years of professional CNC machine tool research and development and manufacturing experience, with exquisite technical force, advanced processing and testing equipment and scientific management, to provide you with more cost-effective machine tools, so that your investment is more valuable.
Major products: vertical machining center series, horizontal machining center series, gantry machining center series and flat rail CNC lathe, inclined rail CNC lathe machine tools with high speed, high rigidity, high performance, high efficiency, is the communication, consumer electronics, medical industry, LED industry, automobile, aerospace industry and other industries the first choice of machine tool equipment.
Our company has a strong research and development ability and many years of manufacturing experience, and has passed the ISO9001 quality system certification.
Quality and service is the foundation of the enterprise, "create value for customers, create opportunities for employees, create benefits for the society" is we have been adhering to the business philosophy, "professional service, sincere to true" is our service concept, to improve the customer service system to provide customers with high quality quality and pre-sale, sale, after-sales service and professional technical support is our mission. To meet the needs of our customers and markets, we hope to develop together with all our partners, and create a better tomorrow!
Product Description
Detailed Photos
Product Parameters

S/Model	Unit	VMC640S	VMC850S	VMC855S	VMC1160S	VMC1370S	VMC-1580S
Machining Range
X axis travel	mm	600	800	800	1100	1300	1500
Y axis travel	mm	400	500	550	600	700	800
Z axis travel	mm	450	500	550	600	700	700
Spindle nose to table	mm	150-600	150-650	120-670	120-720	110-810	130-830
Spindle center to column	mm	470	545	595	645	750	810
Workbench size
Table Dimension	mm	700x420	900x500	1000x550	1200x600	1400x700	1800x800
T-slot Dimension	mm	3x14x120	3X18X130	5X18X90	5X18X100	7X18×100	22X5X140
Max Load	kg	250	500	500	800	1000	1500
Spindle
Taper		BT40	BT40	BT40	BT40	BT40/BT50	BT40/BT50
Max Speed	rpm	Direct 12000			8000-1000rpm
Infeed System
G00 fast infeed(Axis X/Y/Z)	m/min	48/48/48	48/48/48	48/48/48	36/36/36	36/36/36	36/36/36
G01 cutting infeed	m/min	1-10000	1-10000	1-10000	1-10000	1-10000	1-10000
Tool Magazine
Type	type	Disc	Disc	Disc	Disc	Disc	Disc
Capacity	unit	24	24	24	24	24	24
Machine Dimension
Length	mm	1800	2300	2500	3200	3600	3850
Width	mm	2400	2800	2000	2400	3300	3100
Height	mm	2300	2700	2200	2800	2900	2900
Weight	kgs	4600	4600	4800	7500	10500	12000
