DIN-Rail L3 4 10g SFP+ and 8 Ge Tx Industrial OEM Managed Switch Network Switch Industrial

Product Description

Product Description

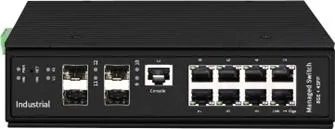

Fibridge F6-5800-M8GT4XS series is Layer 3 management industrial switch developed by Beijing Fibridge. It has 8* 10/100/1000 Mbps Ethernet interfaces and 4* 10G SFP+ optical ports.
With corresponding network management software, it can realize the management functions such as Port Status Query, port configuration, configuration download, upload, system log and alarm record display. The series industrial switches can be built-in network management module, provide Console and Ethernet two kinds of network management interface, can support Console, WEB, Telnet and SNMP and other network management methods.
The device is built-in power module, providing dual 12V-57V DC power supplies. Poe+ function is optional, which can be monitored and managed by remote management.
The device operates at a temperature of -40ºC~+80ºC Range and a humidity of %10~%90(No condensation).The F6 series is compact desktop design, small size, light weight, easy to place in desktop or cabinet. PoE function is optional.
Product Features
Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3z/802.3q/802.3q/p/802.1w/802.1d/802.1S/802.3at/802.3af/802.1p store-and-forward
Meet requirements of reliable work in harsh electrical environment
Support dual power supplies
Support port management, speed rate limit, storm restrict, bi-directional port mirror, etc.
Support flow control
Support IPv4/IPv6
Support STP/RSTP/MSTP/EAPS/ERPS
Support IGMPv1/2/3 and MLDv1/2 Snooping
Support ACL
Support SSH V1/V2/HTTPS
Support VLLP,VRRP
Support MVR,GMRP,PIM-SM
Support layer3 port
Support static routing, dynamic routing RIP v1/v2,OSPFv2/v3,BGP4;
Support ROMN;
Support safe visit control, support RADIUS/TRCACS+
Support system operation log
PoE function is optional
Support one button recovery
Support overload protection
Support Reverse-link protection
Support optical port hot plug
Level of protection: IP40
Industrial and modular design makes the product more reliable and flexible Detailed Photos
Product Parameters

Network Characteristics
Ethernet Protocol	Support IEEE802.3/802.3u/802.3x/802.3Z/802.3AB store-and-forward
Flow Control	IEEE802.3x flow control, back pressure flow control
Network Interface	OPT: 2.5/10GBase-FX SM/MM SFP+ optical port ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLAN	Support IEEE 802.1q VLAN,QinQ
MAC Addresses	12K
Jumbo Frame	Max size 9K
Cache	4Mb
Packet Buffer	128Gbps
Packet Forwarding Rate	95.232 Mpps
Management	Web,SNMP V1/V2/V3,Console,Telnet
Optical Characteristics
Optical Interface	SC/FC/SFP(Optional)
Fiber Core Count	Single / Dual core transmission
Wavelength	1310nm/1550nm(850nm)
Fiber Mode	Single Mode / Multimode
Environmental Characteristics
Temperature & Humidity	Working temperature:-40ºC~80ºC Storage temperature:-40ºC~85ºC Working humidity:10%~90% RH No condensation Storage humidity:5%~90% RH No condensation
Power	DC40~57V 4A(PoE), DC12~57V 1A (Not PoE)
MTBF	≥100000 hours
Mechanical Characteristics
Structural Dimension	187*130*50mm/280*165*79mm
Product Weight	1.29kg or 1.47kg
Power consumption	<=330w

Ordering Information

Model	Interface	Management
F6-5800-M8GT4GS	8* 10/100/1000MBase-T(X) port 4*2.5/10G SFP+ optical ports	CLI, WEB, SNMP, TELNET

Business Terms Price is FOB mainland, China
SFP module not included
3 years warranty.
About Fibridge Established in 1995; 28 years' experience tells our reliability and high reputation. Full product series, including Industrial Switch, optic telecommunication and Video surveillance series. Products have been exported to more than 110 countries. Successful application of Industrial switch in Railway, Metro, Smart city, Highspeed road, etc. Packaging & Shipping

---
