Product Details
Product Description
Product Description

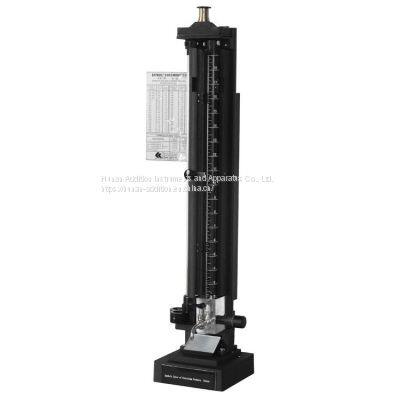

Saybolt Color of Petroleum Products Tester Product model: JF3555
Product Introduction
Saybolt color refers to the value of the height of the liquid column when it is closest to one of the three standard color plates when it is observed and compared through the sample liquid column and the standard color plate. Saybolt color number is specified as: -16 (darkest) ~ +30 (lightest). Adjust the height of the liquid column of the sample according to the prescribed method until the sample is significantly lighter than the color of the standard swatch. Regardless of the darker, suspicious or matching color, the Saybolt color number corresponding to the last liquid column height of the sample is reported. The determination of the color of petroleum products is mainly used in the control process of oil production. Because color is an important quality characteristic of an oil, and one that is easily observed by the user of the product. In some cases, the color can reflect how refined the product is. Oils with a known color range that fall outside this range may be contaminated. However, it is also unreliable to identify the quality of a product by color alone. Therefore, it is not possible to arbitrarily judge the technical indicators of the oil by observing the color of the oil.
Technical Parameter
1. Applicable standard: ASTM D156 GB/T3555
2. Working mode: standard color tube and sample glass tube with scale
3. Light source lamp: 5V/2A
4. Standard swatches: 3 full thickness, 1 half thickness
5. Working power supply: AC220, 240V 50, 60HZ
6. Machine power: 100W
7. Instrument size: 140*140*670mm
8. Net weight: 12KG
Main Feature
1. It is used for the determination of refined liquid oils, such as undyed automotive gasoline, aviation gasoline, jet fuel, naphtha, kerosene, petroleum wax and medicinal white oil and other petroleum products.
2. Exquisite structure and excellent production.
3. The operation is convenient and flexible.
4. The test data is accurate, fast and clear at a glance.
5. The color range of Saipot is: -16～+30
>>
