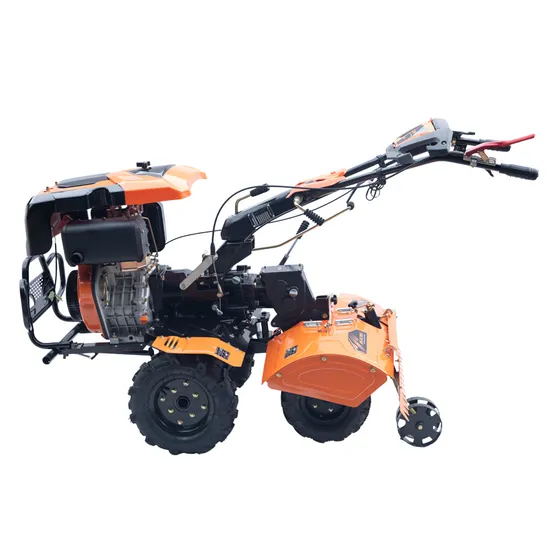

3600r/Min Friction Slice Type Aerobs Tiller for Sale Cultivator Machine

Product Description

Product Description
1. This field management machine belongs to a multifunctional machine.
2. After removing the rear suspension gearbox assembly, it can be used as a tiller, and the rear suspension gearbox assembly can rotate forward and backward, mainly used for dry land trenching, soil cultivation, and tillage operations.
3. This model is powered by an 186FA diesel engine, with a compact structure and easy and flexible operation.
4. The clutch adopts a friction plate type and is widely applicable to orchards, vegetable fields, and other areas in plain and hilly areas.
5. The handlebar can rotate 360 ° horizontally, and can be adjusted up and down. Forward, backward, and high and low speed changes can be made on the handlebar.

Item No.	BSX1100
Engine model	186FAE
Engine type	Single cylinder, vertical, four stroke, forced air cooling
Displacement	418ml
Start mode	recoil start
Engine oil capacity	1.65L
Ignition method	Compression ignition type
Rated power	6.8kw
Rated speed	3600r/min
Fuel consumption per unit operating area	≤35kg/hm2
Main clutch type	friction slice type
Ditching width	280mm
Ditching depth	≥100mm
Ditching speed	>1m/s
Tilling weidth	280mm
Walking box oil volume	2.1L
Overall dimensions	1800×980×1280mm
Package size	1160*580*870mm
Transmission method	Gear+chain
Connection method	Direct connection
Horizontal adjustment amplitude of the handle	360°
Vertical adjustment amplitude of the handle	180°
Walking speed	fast:124r/min ,medium:60r/min ,low:27,reverse:29r/min
Maximum Radius of gyration	190mm
Rotary blade model	Ditching blade(Z205), 4 pieces*3 groups dryland blade(Z206)
Blade speed	Forward: 294r/min Reverse: 367r/min
Fuel tank capacity	5.5L
Earth up speed	>1m/s
Rear suspension box oil volume	1.7L
Net weight	152kg
