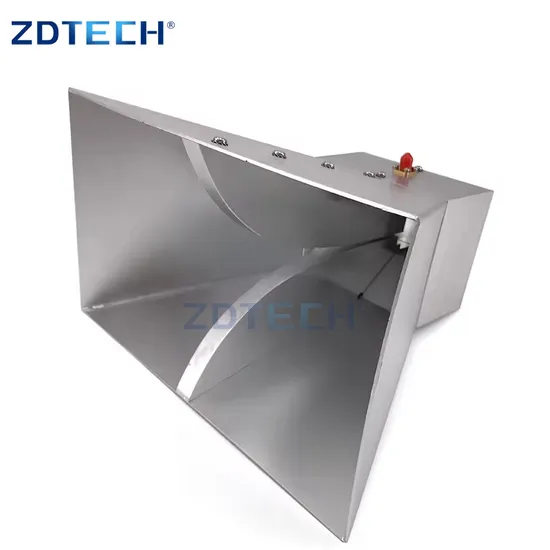

High Gain Super-Wide Band 600- 6GHz 10dBi Broadband Horn Antenna

Product Description

Product Description The 600MHz-6GHz ultra-wideband directional monitoring receiving antenna has the features of ultra-wideband, horizontal plane directional, etc., and is easy to install and carry. It is mainly used to receive vertically polarized radio signals from 600MHz to 6GHz, with functions such as transmitting and receiving.
Key Features: Ultra-Wideband Capability: With a frequency range spanning from 600MHz to 6GHz, this antenna is capable of receiving a wide spectrum of radio signals, making it suitable for diverse monitoring and communication needs. directional Reception: The antenna's horizontal plane directional reception ensures that signals can be captured from all directions, providing comprehensive coverage without the need for constant repositioning. Easy Installation and Portability: Designed for convenience, this antenna is easy to install and can be quickly deployed in various settings. Its portability makes it ideal for field operations and mobile monitoring applications. Transmitting and Receiving Functions: In addition to its receiving capabilities, this antenna also supports transmitting functions, adding to its versatility and utility in different operational scenarios.
Product Parameters

Specification
Operating Frequency	600-6000MHz
Gain	≥10dB (typical)
VSWR	≤2.5 (typical)
Polarization	Vertical
RF Interface	N-50K
Output impedance	50 Ohm
Antenna Dimension	350*350*45
Antenna Weight	≤ 5kg
Operating temperature	-50ºC~+70ºC
Storage temperature	-55ºC~+70ºC
Lead time	Negotiated
Customized Service	Yes

---
