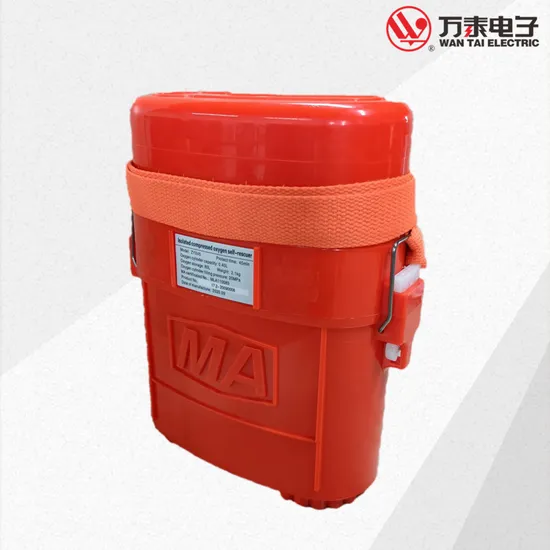

an Isolated Regenerative Self-Rescue Device with Compressed Oxygen as Gas Source

Product Description

Isolated Breathing Apparatus Compressed Oxygen Self Rescuer Manufacturer Product Description The self-rescuer is an isolated and regenerative self-rescuer with compressed oxygen as the gas source. The human respiratory system is isolated from the outside world, which can prevent various toxic and harmful gases from entering, and can be used when people in distress escape. The self-rescuer has three oxygen supply modes, quantitative oxygen supply, automatic oxygen supplement and manual oxygen supplement. Make performance more reliable and stable. It has the characteristics of small size, light weight, and convenient carrying (the non-metallic material of the shell meets the requirements of the GB3836.1-2000 standard).
Detailed Photos
Figure 1. Schematic diagram of ZYX45 isolated compressed oxygen self-rescuer
1. Hook, 2. Cleaning tank, 3. Bracket, 4. Oxygen cylinder, 5. Pressure reducer, 6. Handwheel, 7. Safety helmet, 8. Switch, 9. Upper cover, 10. Compensation air pressure plate, 11. Pressure gauge, 12. Exhaust valve, 13. Airbag, 14. Exhalation tube, 15. Exhalation valve, 16. Mouth gear, 17. Nose clamp, 18. Pressure cap, bottom cover
Product Parameters

Item		ZYX30 Specification	ZYX45 Specification
Protection time (min)		30	45
Oxygen cylinder volume (L)		>0.30	≥0.40
Gas cylinder filling pressure (MPa)		20	20
Gas storage capacity (L)		≥56	≥80
Oxygen supply the way	Quantitative oxygen supply (L/min)	≥1.2	≥1.2
	Manual oxygen supplement (L/min)	≥60	≥60
	Automatic oxygen supplement (L/min)	≥60	≥60
Automatic exhaust pressure (Pa)		150~300	150~300
Mass (kg)		<1.8	<2.1
Dimensions (mm)		210×170×90	228×190×98
Product validity period		The storage period is 5 years, and the wearing period is 3 years.
