High Cop a+++ Keymark Bafa CE Certificated R290 Eco-Friendly Heating Cooling Air to Water Hot Heat Pump Monoblock

Product Description

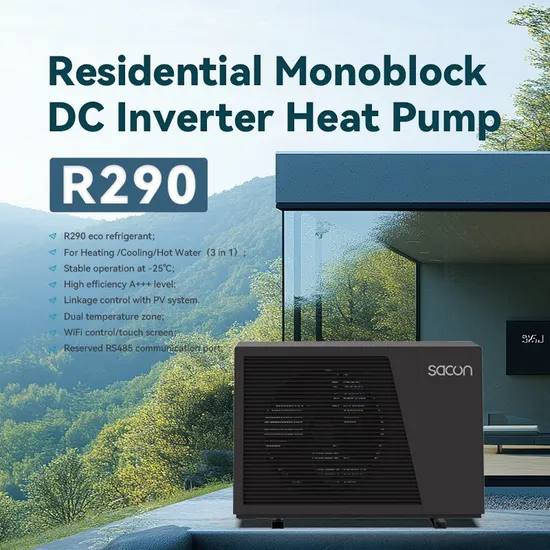

Product DescriptionR290 refrigerant GWP=3 , inverter monoblock A+++ air source heat pump for space heating ,cooling and domestic hot water in one system.
Product Features 1). R290 refrigerant, low GWP (GWP=3).2). Energy class: A+++.
3). Stable operation at -25ºC
4). Power Detection Function
5). SG-READY Function
6). 5-Inch TFT True Color Screen7). 5G/2.4G Compatible WIFI Module8). Dual Temperature Zone9). Reserved RS485 Communication Port10). Linkage Control with PV Function
11). Outlet water temperature up to 75ºC. *Installation for business,We also provide technical support.
Based on monoblock air to water heat pump,it catch heat energy from the ambient air and transfers it to warm/cool your home and supply sanitary hot water ,up to 75% energy saving from our heat pump.
*Heating in winter,Cooling in summer &Sanitary hot water whole year ,3 in 1 function satisfy people's Daily needs.
*In response to the protection of the earth home, we adopted the more environmentally friendly R290,GWP=3.
*High efficiency A+++ level air to water heat pump water heaters.
In addition, Its cop value is much higher than others , which ensures the perfect performance and ultra-high energy efficiency of the unit.
*The DC compressor operates reliably at extreme temperatures of -25°C.
It can still output hot water of 75°C, and the unit is protected against freezing.
*Smart life:WiFi/APP connect/5-inch TFT true color screen,RS485 smart grid.
Efficient IoT solution:
customer management platform can effectively save labor costs for dealers.It can be connected with WIFI or DUT to realize remote monitoring of data record all the operating parameters of the units and synchronize it to the management background of dealers and manufactures.
*Connect solar panels PV system for more energy efficient, environmental friendly ,save money and time .
Product Parameters

Model			BLN-006TC1	BLN-008TC1	BLN-012TC1	BLN-018TC1
Power supply			220-240V~ / 50Hz	220-240V~ / 50Hz	220-240V~ / 50Hz	220-240V~ / 50Hz
Heating¹ (A7/6ºC,W30/35ºC)	Heating Capacity	kW	2.92-9.10	4.10~12.10	4.30-15.20	7.24-21.90
	Power Input	kW	0.61-2.11	0.79~2.85	0.87-3.73	1.50-5.88
	Current Input	A	2.80-9.25	3.45~13.04	4.02-16.38	6.86-30.25
	COP	w/w	4.31~5.66	4.24~5.57	4.07~5.57	3.82~5.59
Heating² (A7/6ºC,W47/55ºC)	Heating Capacity	kW	2.99-8.16	4.05~12.15	4.25-14.55	6.36-19.45
	Power Input	kW	1.03-2.92	1.38~4.06	1.45-4.28	2.15-6.85
	Current Input	A	4.57-12.79	5.73~17.70	6.71-18.80	9.84-30.12
	COP	w/w	2.79~3.46	2.99~3.45	2.83~3.45	2.84~3.57
Cooling (A35/24ºC,W12/7ºC)	Cooling Capacity	kW	1.38-5.70	3.65~8.59	3.65-11.04	4.55-17.20
	Power Input	kW	0.67-2.44	1.12~3.31	1.12-3.97	1.85-7.31
	Current Input	A	3.06-10.27	5.18~14.47	5.18-17.44	8.47-32.1
ERP level(out water temp. at 35ºC)		/	A+++	A+++	A+++	A+++
Max. Input Power		kW	3.5	5.40	5.40	7.5
Max. Input Current		A	15.0	25.0	25.0	35.0
Refrigerant Type/Charge/GWP		.../kg	R290/0.55/3	R290/1.05/3	R290/0.90/3	R290/1.4/3
fan quality		/	1	1	1	2
IP Class		/	IPX4	IPX4	IPX4	IPX4
Max. Outlet Water Temp.		ºC	75	75	75	75
Operating Ambient Temp.		ºC	-25~45	-25~45	-25~45	-25~45
Water Piping Connections		/	G1	G1	G1	G1-1/4
Rated Water Flow		m³/h	1.0	1.4	2.06	3.1
Water Pressure Drop		kPa	20	20	20	55
Noise Level		dB(A)	46	43	53	56
Product Dimensions ( L×W×H )		mm	1187*418*805	1287*448*904	1287*448*904	1187*488*1456
Packed Dimensions()		mm	1217*463*920	1317*493*1020	1317*493*1020	1217*538*1570
Product Weight		kg	110	134	134	195
Packed Weight		kg	122	146	146	208

Model			BLN-008TC3	BLN-012TC3	BLN-018TC3
Power supply			380-415V~ / 50Hz	380-415V~ / 50Hz	380-415V~ / 50Hz
Heating¹ (A7/6ºC,W30/35ºC)	Heating Capacity	kW	4.10~12.10	4.30-15.20	7.24-21.90
	Power Input	kW	0.79~2.85	0.87-3.73	1.50-5.88
	Current Input	A	1.62~4.57	1.78-6.04	2.82-9.16
	COP	w/w	4.24~5.57	4.07~5.57	3.82~5.59
Heating² (A7/6ºC,W47/55ºC)	Heating Capacity	kW	4.05~12.15	4.25-14.55	6.36-19.45
	Power Input	kW	1.38~4.06	1.45-4.28	2.15-6.85
	Current Input	A	2.70~6.43	2.84-6.78	3.71-10.60
	COP	w/w	2.99~3.45	2.83~3.45	2.84~3.57
Cooling (A35/24ºC,W12/7ºC)	Cooling Capacity	kW	3.65~8.59	3.65-11.04	4.55-17.20
	Power Input	kW	1.12~3.31	1.12-3.97	1.85-7.31
	Current Input	A	1.97~5.25	1.97-6.30	2.99-11.26
ERP level(out water temp. at 35ºC)		/	A+++	A+++	A+++
Max. Input Power		kW	5.85	5.85	7.5
Max. Input Current		A	10.0	10.0	17.0
Refrigerant Type/Charge/GWP		.../kg	R290/1.05/3	R290/1.05/3	R290/1.4/3
fan quality		/	1	1	2
IP Class		/	IPX4	IPX4	IPX4
Max. Outlet Water Temp.		ºC	75	75	75
Operating Ambient Temp.		ºC	-25~45	-25~45	-25~45
Water Piping Connections		/	G1	G1	G1-1/4
Rated Water Flow		m³/h	1.4	2.06	3.1
Water Pressure Drop		kPa	20	20	55
Noise Level		dB(A)	43	54	56
Product Dimensions ( L×W×H )		mm	1287*448*904	1287*448*904	1187*488*1456
Packed Dimensions()		mm	1317*493*1020	1317*493*1020	1217*538*1570
Product Weight		kg	134	134	195
Packed Weight		kg	146	146	208

Company ProfileSacon HVAC,a number of Solareast,which is a prominent player in the energy sector, operates five state-of-the-art production bases across China.Among them, located in Shunde, Guangdong, specializes in the production of air source heat pumps.
Spanning over 100,000 square meters, we have invested USD 2 million in the construction of advanced testing laboratories. These cutting-edge facilities enable us to rigorously test machines up to 300kW, even in the harshest cold climates, with temperatures as low as -30°C.
Moreover, Solareast Heat Pump Ltd. has received prestigious certifications such as ISO9001, ISO14001,ISO18001, and our products have gained approval from BAFA,CE, Rohs, MCS, KEYMARK, CB, SAA, ErP, among others.
With more than a decade of experience in air source heat pump technology, Solareast Heat Pump Ltd. stands at the forefront of providing sustainable and highly efficient thermal energy solutions.
We have five Industrial Parks, Zero-carbon solutions for sustainable living with household solar water heaters, heat pumps, kitchen appliances, and water purifiers.
FAQQ1 Are you a manufacturer?
Answer: Yes, we are a professional heat pump manufacturer with rich experience and complete R&D, production, sales, and service supply.
Q2: What is your main product?
Answer: Our main products include DC inverter heat pump, air source heat pump water heaters, all in one heat pump, swimming pool heat pump, ,EVI heat pump and commercial in low temp. areas.
Q3: How do I place an order?
Answer: Please send us an inquiry or contact us through online services; After receiving your inquiry, we will reply to you Catalogs, quotations, and other information you need. Q4: Do you provide OEM/ODM customized manufacturing services?
Answer: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce European/North American/Australian standard heat pump under your brand according to your special needs. Q5: Can I apply to become your heat pump distributor?
Answer: We are currently looking for more heat pump distributors worldwide, who can distribute our heat pump products in local countries/regions. Q6: I need to buy in large quantities. Can you provide a sample service?Answer:Yes, we can provide sample service, and we have engineers to help you solve installation problems .

---
