CNC Vertical Hydraulic Lathe Hardware Parts Turning Processing

Product Description

Product Description
1: Internal and external cylindrical surfaces, internal and external conical surfaces, grooving
2: Circular arc surfaces and various curved surfaces
3: Rough and fine processing of threads
4: High rotation accuracy, large load-bearing capacity, small thermal deformation
5: AC servo motor, ball screw drive
6: Four-station rotary tool table, convenient tool change
7: The crossbeam vertical tool holder is equipped with a closed guard to increase the safety and ease of operation of the machine tool
8: The worktable spindle adopts precision adjustable warp clearance double-row short cylindrical stick bearing for centering, and the axial direction adopts cross-flow static pressure guide rail.
This CNC equipment has good performance, a wide range of processes, and high production efficiency. It is suitable for mechanical processing in various industries and the machinery manufacturing industry. It can be used for internal and external cylinders, conical surfaces, end planes, grooves, chamfers, etc.

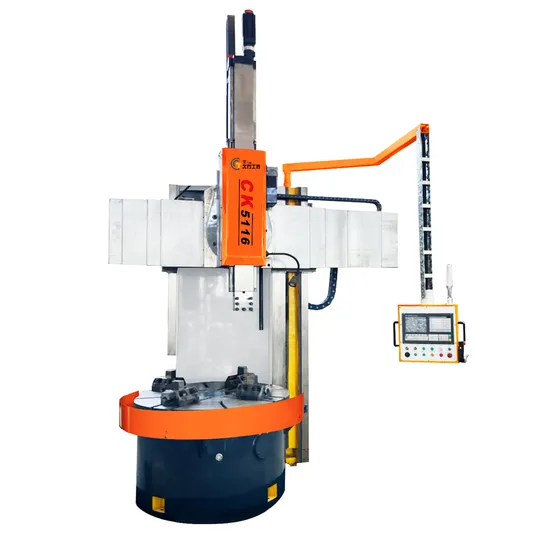

CNC Vertical Lathe Single Column Vertical Lathe

Product Parameters

Project/Specification	Unit	CK5112A	CK5116	CK5126
Max. Processing diameter	mm	1250	1600	2600
Workbench diameter	mm	1000	1400	2200
Max. Height of work piece	mm	1000	1200	1250
Workbench load-bearing	Kg	3200	5000	8000
Workbench speed range	R/min	6.3-200	5-160	2.2-70
Tool holder feed range	Mm/min	0.8-86	0.1-2000	0.8-86
Tool holder cutting force	N	2000	24500	24500
Side tool holder		Optional
Maximum Torque	Nm	1750	24500	31360
Tool holder travel level	mm	700	915	1400
Tool holder travel vertical	mm	650	800	800
Crossbeam travel	mm	650	800	890
Tool holder rotation angle	°	30
Crossbeam lifting speed	Mm/min	440
Main motor power	Kw	22	30	30
Lifting feed motor power	Kw	1.3/1.8
Size	mm	2360*2277*3403	2600*2600*3300	3380*3230*3400
Weight	Kg	8000	12000	20000
Optional CNC system		GSK/KND/SYNTEC/FANUC/SIEMENS/MITSUBISHI

Models are constantly updated and are subject to change without prior notice.
About Us

Certificate display
Visiting customers
Packaging & Shipping
FAQ
1. What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.
2. Can we pay by L/C or others ?
Yes ,you can make the payment by T/T , l/C etc.
3. What is your payment terms ?
30% down-payment after contract ,and 70% payment before shipment,
Meanwhite it can be discussed according to your situation.
4.When is the delivery time?
The delivery depends on different machines with different configurations.
Please contact us to confirm it is in stock or not.
5. How to handle the warranty period?
During the warranty period, we will provide free replacement parts (EXW)
which are easy damaged.
If the machine problem is not belonging to our machine quality problems,
when the buyer needs us send engineers to give repairing service, we charge
the appropriate cost.
6.Can your company send the technical personnel to our company and direct our workers for free?
When the machine arrive the buyer's installation site, we timely send mechanical and electrical
engineers to install according to the buyer's schedule, the buyer undertakes board and lodging
of personnel abroad in the process of installation, and also USD50.00-100.00 per day per person.
The seller will cooperate with the buyer to deal with visa and installation preparation before
going abroad.

---
