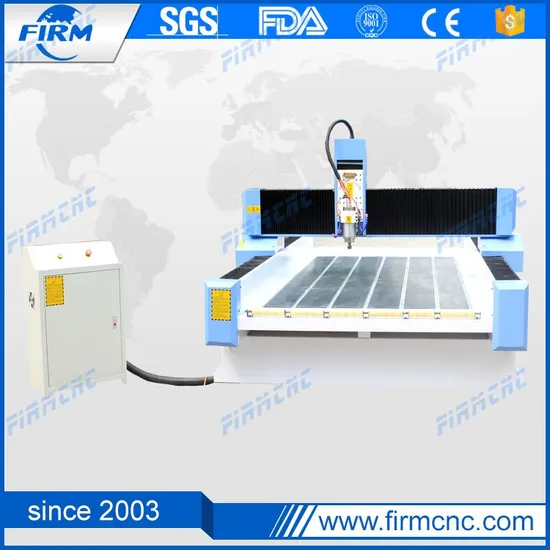

High Quality China Supplier Marble Stone CNC Engraving Cutting Router

Product Description

High Quality China Supplier Marble Stone CNC Engraving Cutting Router
It is mainly used in engraving stone, marble, granite, black stonge, bluestone, jade stone, crystal, glass, organic glass Floor tile and ceramic tile, plastic, chemical synthesis board, PVC board, bamboo ware, aluminum-plastic panel, metal, etc., line carving, 2D engraving, 3D engraving, 3D relief, Cutting, drilling, polishing, etc.
1. Features:
1) Spindle: China best brand CS 5.5kw water cooling spindle , which guarantees the high working speed, accuracy, rotating precision. 2) Inverter: Fuling Inverter or Delta Inverter is optianal, it guarantees the high working speed and accuracy, and engraves without any ripple, but with smooth bottom level and clear outline.
3) Motor: Servo motor and stepper motor is optional, which guarantees the positional accuracy.
4) Driver: For stepper motor, Leadshine bigger driver; For servo motor, use matching driver. It can supply a steady stream power for motor.
5) Guide Rail:Taiwan Hiwin linear rail, self-lubricating sliding block. It ensures equal force in all directions and accuracy and strength of the machine.
6) Screw Transmission:Taiwan HIWIN screw transmission, it has high efficiency,sensitivity, positioning accuracy, long life.
7) Rack: Using Helical rack and pinion transmission, it has higher accuracy.
8) Control system: Use NK105 DSP controller, with stable and easy operation. ( NC Studio, mach3 can be choosed)
9) France Schneider contactor and leakage protector, protect the machine circuit well during the working.
10) High soft cables, tens of thousands of bending without damage.
11) Lathe bed is of high quality by cast steel, after re-treatment, much stronger and more stable. Aluminum table +PVC+ sink.
12) Mist-cooling system, prevent stone chips radiance when processing.
2. Descriptions of stone engraving machine:

Description	Parameter
X,Y,Z Working Area	1300mmx2500mmx300mm
Table Size	1450mm×2940mm
Table Surface	T-slot Table
Frame	Thicker Welded Steel tube Structure
Spindle Power	5.5KW water cooling spindle
Spindle Speed	0-24000RPM
Motors	450B stepper motors ( 4 sets in total )
Driver	Leadshine driver
Transmission	X,Y Axis: Helical Rack and Pinion Drive Z Axis: Taiwan TBI ball Screw
Machine Guide Rails	Taiwan Hiwin Linear square guide rail
Inverter	Fuling Inverter
Operating System	N105 DSP control system
Soft Limit switch	Japan Omron limit
AC contactor	France Schneider
X,Y,Z Traveling Positioning Accuracy	±0.03/300mm
X,Y,Z Repositioning Accuracy	±0.03mm
Max. Rapid Travel Rate	33000mm/min
Max. Working Speed	25000mm/min
Max. Power Consumption	7KW(Without Spindle)
Working Voltage	AC380V/50Hz, 3Phs (Option: 220V)
Command Language	G Code
Computer Interface	USB
Collet	ER25
Software Compatibility	Artcam OR Type3 Software
Running Environment Temperature	0 - 45 Centigrade
Relative Humidity	30% - 75%
Packing Size	3300mm*2100mm*2300mm
N.W.	1450KG
G.W.	1680KG
Optional Parts	Motor and Driver: Servo system Japan: Yaskawa / Panasonic servo China: Taiwan Delta servo
	Control system: NC Studio/Syntec/mach3

3.Control box:
4.Application:
1. Stone industry: apply to 3D relief, thread sculpture, cutting, drilling 2D engraving on all kinds of materials, such as natural marble, granite, artificial stone, tombstone, milestone, ceramic tile, glass and other materials
2 Woodworking industry: apply to door, windows, cabinet, craft door, paint-free door, screen, wave board processing,
3. Advertisement industry: apply to processing all kinds of design of rich and colorful model, Such as labels. architectural molds, badge, engraving plate . exhibition boards, doorplate. Direction board, decoration and so on.
4. Handcraft industry: apply to engraving patterns and characters on all kinds of materials , such as wood,bamboo, marble , organic board, double color board.
5. Other industry: Relief carving, photograph craving, openwork engraving, plane engraving, cutting and milling bottom etc.
If you have specific requirement for CNC stone engraving machine, customized is available.
5. Service & Warranty:
1) Two years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when if any problem during the warranty period.
2) Lifetime maintenance free of charge.
3) 24 hours on line service each day, free technical support.
4) Machine has been adjusted before delivery.
5) Provide the whole life after service.
6. Packing & shipping:
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
7. FAQ:
How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
How about the payment terms?
30% T/T for deposit, 70%T/T paid before shipping.
T/T, West Union, Paypal
What is the MOQ?
MOQ for our products is 1 set machine, we could send it to your country port if you tell detail information about your country port.
Any questions, please feel free to contact me.

---
