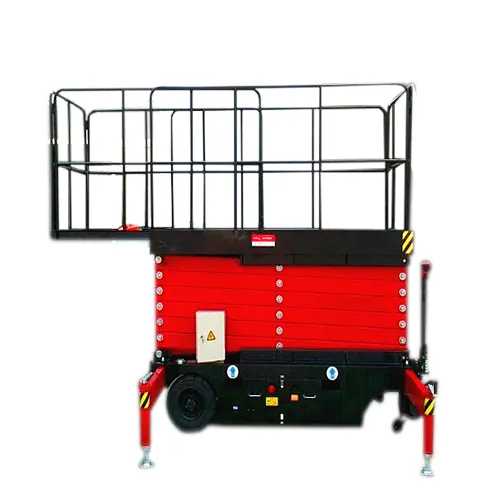

12m Self Propelled Manganese Steel Scissor Lift for Maintenance

Product Description

Self-propelled Scissor Lift
1.Made of wide section manganese steel providing more stability
2.Lifting Inching control for lifting and lowering, ground / platform control mode could be switched.
3.Control voltage: DC 24V
4.Equipped emergency lowering device, enable safe lowering when power off
5.Double contactors and double limit switches are provided
6.In chassis is slide-out engine tray, convenient for maintenance
7.Forklift pockets are made for transportation
8.With self-propelled device,easy steering
Standard Configuration
1.AC380V
2.Emergency Lowering valve
3.Leveling device with supporting screw
4.Waterproof electric box
5.Emergency stop button
Optional Configuration
1.AC220V(For Max 12m platform),DC
2.AC-DC,manual hydraulic pump
3.Italian hydraulic system
4.Explosion proof electric control system
5.Rubber solid tire
6.Extension platform
7.Electric moving device
Parameters

Model	SJY0.45-5	SJY0.45-6A	SJY0.45-6B	SJY0.45-8	SJY0.45-10	SJY0.45-12
Max Platform height(mm)	4900	5900	6000	8000	10000	11800
Min Platform height(mm)	900	980	1080	1200	1360	1480
Platform Size(mm)	1450*600	1700*750	2300*800	2300*800	2300*1120	2300*1120
Rated Load(kg)	450	450	450	450	450	450
Voltage(V/Hz)	AC380/50	AC380/50	AC380/50	AC380/50	AC380/50	AC380/50
Travel motor(Kw)	0.75	0.75	0.75	0.75	0.75	0.75
Motor Power(Kw)	1.1	1.5	1.5	1.5	2.2	2.2
Overall Dimensions(mm)	1700*750*2080	2100*900*2160	2750*1050*2260	2750*1050*2380	2750*1400*2540	2750*1400*2660
Extended outrigger size(mm)	1400*1400	1650*1650	1800*2270	1800*2270	2250*2270	2250*2270
Overall weight(kg)	520	720	1270	1420	1770	1920
