Ductwork HVAC UV Light Kit | LEDHOME

Product Details

Product Description

Product Description
Specification:

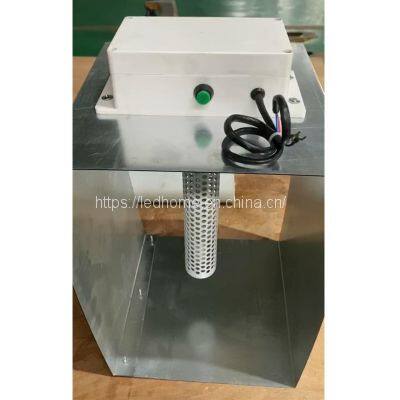

Ductwork HVAC UV Light Kit Sterilization Factor: Photocatalysis + UVC Sterilization

Model	JYL-PHT-150	JYL-PHT-280	JYL-PHT-450
Air Volume (CMH)	340-680	700-2380	1000-5000
Dimension (mm)	200x196x92	340×196×92	490x196x92
Power (w)	5	8	20
Plug hole diameter	φ48-φ50 mm	φ48-φ50 mm	φ48-φ50 mm
Virus removal efficiency	95%-98%	95%-98%	95%-98%
Light wave intensity	80uw/c㎡	110uw/c㎡	200uw/c㎡
Power supply	220V/50-60Hz	220V/50-60Hz	220V/50-60Hz
Working conditions	0℃-45℃/＜90RH	0℃-45℃/＜90RH	0℃-45℃/＜90RH
Pressure drop (Pa)	5 - 10	5 - 10	5 - 10

Features:
Main Performance Parameters
1. High Sterilization Effect: natural bacteria in the air Eliminated rate≥90.0%
2. High harmful air Effect: remove formaldehyde, benzene, TVOC ≥90.00％；
3. Widely sterilization: Bacteria, mold, virus and escherichia coli ect.
4. Control: It can be connected with the central air conditioner for turn OFF/ON.
5. Plug-in structure design, easy to install, disassemble, clean and repair.
Application:
1. Hospitals, clinics, rehabilitation centers, blood stations, sterile rooms, etc.
2. Airports, stock exchanges, hotels, libraries, science and technology museums, archives, waiting rooms (cars), gymnasiums, fitness venues, shopping malls, office space and many other places.
3. Clean rooms, food factories, farms, electronics, optics, precision instrument workshops, biopharmaceutical research laboratories, laboratories, etc., where the cleanliness requirements are high and there are odors
Please contact us for brochures and catalogues ↓

---
