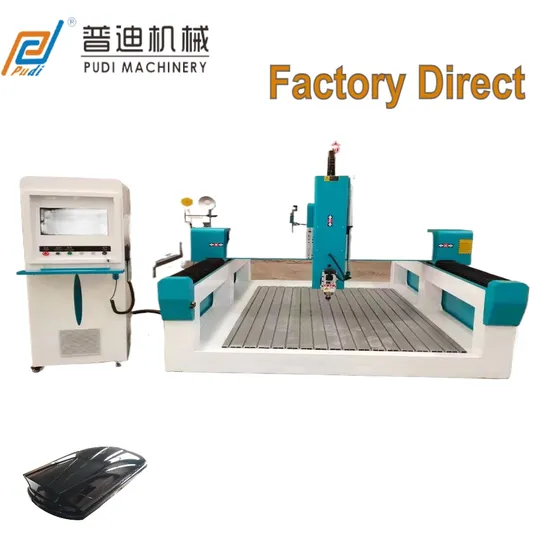

Factory New Model CNC Engraving Machine for Cutting and Engraving Furniture

Product Description

Product Parameters

Model Number	XFL-1525 Engraving Machine
X, Y, Z axis machining accuracy	±0.1/300mm
X, Y, Z, axis travels	1500mm*2500mm*400mm
Transmission method	X, Y rack and pinion, Z-axis lead screw
Spindle power	5.5KW water-cooled spindle
Spindle speed	0-24000r/min
Maximum operating speed	30m/min
Lead screw support and fixed end bearings	Precision matched bearings
Control system	Weihong control system (computer required separately)
Drive motor	Laisai servo drive motor
Frequency converter	Beishide frequency converter
Table structure	T-slot aluminum table + PVC
Z-axis ball screw	High-precision ball screw from Taiwan
XY rack	High-precision ground rack from Taiwan
X/Y/Z-axis guide rails	High-precision rectangular guide rails from Taiwan's Hiwin
X/Y/Z bearings	NSK bearings from Japan with no slip
Machine structure	Square steel welding, heavy-duty structure, annealed treatment for the whole machine
Power requirement	380V/50Hz
Electrical cabinet	Independent electrical cabinet box
Other accessories	Circulating water pump, water tank, tool box

Machine Shop Pictures
Product Description
The PDVF-Dk engraving machine is a versatile industrial engraving machine suitable for a wide range of materials and application scenarios. It features a 3-axis CNC control system with an open top fixed platform design that enables high-speed and precise engraving and cutting functions, making it particularly suitable for a wide range of sheet materials, such as wood and plastic parts.
The machine's ease of operation is a major advantage. The bed made of thick-walled steel is meticulously welded and thoroughly aged and stress relieved to ensure the stability and reliability of the machine. The whole machine adopts high-speed stepping drive and Y-axis dual motor drive for smooth and reliable operation. In addition, it is equipped with precision milling helical rack and pinion, linear guideway and silent screw, as well as a 3.2KW water-cooled spindle with a spindle speed of up to 24,000RPM for high-performance operation.
The PDVF-Dk engraver supports a wide range of formats, including PLT/DXF/EPS, which can be generated by CAD/CAM software such as AUTOCAD, UG, AI, and more. Its high-resolution CCD system automatically acquires contours and makes automatic cuts without white edges for a wide range of materials, such as wood, plastic parts, etc., ensuring accurate and consistent engraving results.
As a factory-direct product, PDVF-Dk engraving machine offers comprehensive quality assurance and after-sales service. In addition, we also offer non-standard customisation services, which enable us to personalise the design and manufacture according to the specific needs of our customers, ensuring that the machines are perfectly matched to their production processes and objectives.

---
