High Rigidity Multi-Spindle Metal CNC Deep Hole Drilling Machine SD-500

Product Description

Drilling is undeniably the cornerstone of machining operations, boasting an extensive array of applications across diverse fields. Traditional drilling equipment, such as bench drills, milling machines, and radial drills, often confines laborers to repetitive tasks without the assurance of quality. However, the constraints of safety, efficiency, and processing limits have long been challenges for manufacturers and operators. Enter the era of CNC technology, where the advent of CNC deep drilling machines has revolutionized the industry. These innovative machines liberate laborers by solving the challenges of deep drilling processes. Now, a single drilling operation can achieve the precision quality of conventional machines for drilling, enlarging, and expanding tasks. They also feature automatic chip removal, CNC positioning, and seamless automatic processing, setting a new benchmark in manufacturing.

3 Axis CNC Deep Hole Drilling Machine	4 Axis Vertical CNC Deep Hole Drilling Machine	Multi-Spindle CNC Deep Hole Drilling Machine	6 Axis CNC Deep Hole Drilling Machine

Multi-Spindle Deep Hole Series

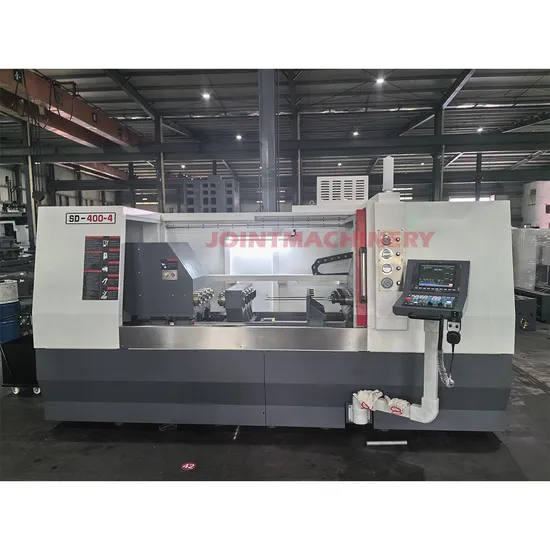

Introducing the Multi-Spindle Deep Hole Drill: a cutting-edge machine crafted specifically for machining the central deep holes of shaft parts. This exceptional tool is designed to deliver high efficiency, precision, and an immaculate finish, catering to the deep hole machining needs of shaft components with unparalleled excellence.
1. It is engineered for crafting the central hole of bar stock, tailored specifically for the deep hole machining of center holes.
2. Featuring dual spindle processing capabilities, it significantly enhances work efficiency, allowing simultaneous operations.
3. Taper hole guidance combined with high-pressure oil cooling ensures outstanding precision and an exquisite finish, maintaining the highest quality standards.
4. Customers can choose between the latest CNC systems from Siemens or Taiwan, tailored to specific preferences and requirements.
5. The machine can be equipped with a manipulator for seamless automatic loading and unloading, offering an elevated level of automation for enhanced productivity.
High Rigidity Multi-Spindle Metal CNC Deep Hole Drilling Machine SD-500

Model	Unit	SD-500
Inner diameter of drilling	mm	2.0-20
Max drilling depth	mm	500
Max diameter of workpiece	mm	80
Max length of workpiece	mm	500
Max rotating speed of principalaxis	rpm	6000
Clamping diameter range	mm	10-100
Spindle feed speed	mm/min	0-150
Spindle travel speed	mm/min	0-5000
Workpiece rotation speed	rpm/min	144
Spindle rotating motor power	kw	5.5/7.5
Workpiece rotating motor power	kw	0.75*2
Total power of machine tool	kw	26
Coolant pressure range	mpa	3-12
Coolant flow range	L/min	0-64
Machine size	mm	4800*2000*2500
Machine weight	kgs	4300

Shenzhen Joint Machinery Co., Ltd. is a distinguished manufacturer and exporter specializing in CNC lathe machines, CNC deep hole drilling machines, Swiss-type automatic lathes, milling machines, and grinding machines, among others. Our dedication to delivering top-notch machines and exceptional service is unwavering. We focus on meticulous quality control and continuous improvement to ensure our products uphold the highest industry standards. By integrating core technologies from Taiwan and Germany with cutting-edge production equipment and methodologies, we ensure our machinery stands out for its superior quality and reliability. Renowned for outstanding performance, precision, stability, and dependability, our machines adeptly handle complex machining needs. Globally, our products are acclaimed, spanning markets across Asia, Europe, South America, North America, and beyond. We've fostered enduring partnerships worldwide, co-creating significant business value together with our esteemed clients.

---
