Automatic Plastic Draw String Garbage Bag Making Machine HDPE LDPE PLA Biodegradable Bag on Roll Making Machine

Product Description

Product Description
Product Parameters
Performance and features:
1. The rope threading garbage bag making machine is manufactured by our company with advanced technology at home and abroad.
2. Computer controlled stepping motor structure is adopted.
3. It has photoelectric automatic tracking, white bag and color bag conversion function, microcomputer fixed length, automatic counting, arrival alarm and automatic temperature control.
4. It has automatic cutting, air hole, half round hole, belt threading, belt displacement, side sealing, bottom sealing, point breaking, folding, coiling and sub coiling mechanical devices.
5. The sealing is synchronized with point breaking, and the back cover is firm and beautiful.
6. The machine can process continuous rolling, wear garbage bags and continuous rolling flat bags.
7. The whole machine adopts a one-stop production line with high degree of automation. It is an ideal equipment for making wearing garbage bags and an advanced equipment to replace imported similar products
Main Technical Variables:

model	1300mm	1200mm	1100mm	1000mm	800mm
(mm)Finished length	100-1200mm	100-1100mm	100-1000mm	100-900mm	100-700mm
(mm)Finished product width	100-1200mm	100-1100mm	100-1000mm	100-900mm	100-700mm
Bag thickness	0.01-0.06mm
machine speed	30-120pcs/min
host	2.2kw		1.5kw
Frequency converter
Discharge motor	1.1kw 1.1kw
Discharge frequency conversion
servo motor	4.4kw*1 3.5kw*1		3.5kw*1 2.2kw*1
Total power	40kw	35kw	30kw	26kw	25kw
Machine weight	3000kg	2800kg	2600kg	2200kg	2000kg
Machine size	10000*2650*1800mm(L*W*H)	10000*2550*1800mm(L*W*	10000*2450*1800mm(L*W*	10000*2350*1800mm(L*W*	10000*2150*1800mm(L*W*
Manual winding motor	1.5kw
Manual winding frequency conversion

1. Manual roll change / automatic roll change
2. Pneumatic unwinding
3. Winding motor: 1:7.5 reduction motor / servo motor
1. Automatic threading
2. Rope requirements: (5cm single piece material or 2.5cm double folded material, one rope and bag making material)
3. Belt brake
4. Material cut-off shutdown
5. Photoelectric start stop
6. With cutter
7. Threading motor: 1:7.5 reduction motor
1. Pneumatic feeding
2. Automatic constant tension
3. Discharge magnetic particle tension
4. Automatic edge correction for discharging (edge correction stroke: plus or minus 7cm)
5. Discharge coil diameter: 600mm (customizable) 1. 2 hot knives forged with fine brass
2. Upper and lower separation ironing
3. Operation mode: Mechanical 1. Hot knife fine brass forging
2. Toothed cutter with point
3. Belt strengthening ironing
4. Operation mode: mechanical + pneumatic 1. Overlap of elevated breach
2. Upper and lower double swing arms
3. Rubber roller belt reduction motor

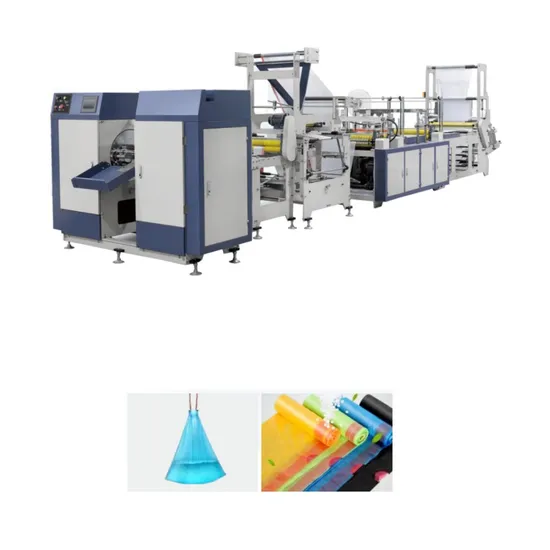

machine photo
bag photos Company Profile

Packaging & Shipping
Certifications
FAQ
Q: Are you manufacturer or trading company?
A:We are the manufacturer and have our own workers and factories.
Q:How long is the warranty period?
A: All of our products have 2 year warranty and whole life maintance
Q: What's the main market of your company?
A: We have customers all over the world
Q: What's your delivery time and payment Terms?
A: Normally,it need about 10-30 days.The exact time depends on your quantity.The payment terms always 30% deposits,70% to be paid before shipment.
Q: What package do you use for the product?
A:Be Coated with anti-corrosion oil, and covered with plastic film, wooden box package need extra cost.
Q: Does your factory provide installation service?
A:Our engineer can go to customer factory to installation . buyer should prepare materials used to testing the machine in advance and should be responsible for the cost of supplier's technician, including round air tickets, visa cost, accommodation and salary 120-150USD/Day per person since the day start out until the day arriving at factory.
Q: Can we visit your machine operation in your factory?
A: Welcome to you go to our factory to see the machine operation.
Q: Where's your factory located? How can we visit there?
A: We are in Zhixin industry Zone, Ruian City,Zhejiang province,China.
You can by air to Wenzhou airport and by High-speed train to Rui'an Station
