Excavator Cotton Grapple Metal Scraps Handling Machine Wood Grapple Sugarcane Grab Loader

Product Description

Excavator grapple scrap grapple manufacturers sugarcane loader

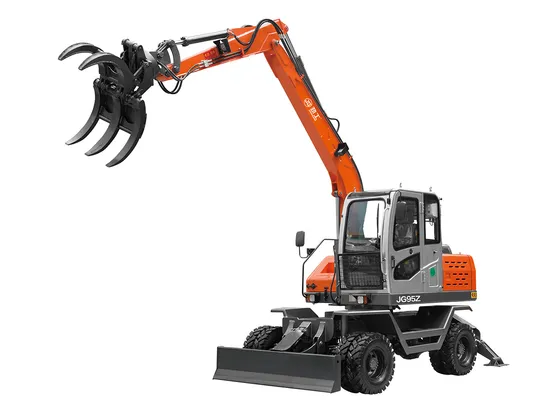

JG 95Z Grapple excavator is equipped with 65KW turbocharged engine, this type of grapple wheel
excavator shows excellent performance in slope climbing, material loading and so on.
SPECIFICATIONS

SPECIFICATIONS OF JG95Z GRAPPLE EXCAVATOR
RANGE OF OPERATION			Boom length				3680mm
			Arm length				1850mm
			Max radius of capture				7000mm
			Max. Opening Width of Grab				1250mm
			Min. Opening Width of Grab				80mm
			Max. RADIUS Grabing Weight				800kg
			Grapple rotation angle				360°
			Steel Wire Rope Tension				25KN-35KN
			Rope Diameter				ø8mm~ø10mm
			Rope capacity				50m~100m
			Max dumping height				4650mm
			Back-end radius of gyration				1980mm
DIMENSION			(Length*width*height)Transport Dimensions				6450*2330*2930mm
			Wheel base				2400mm
			Track(Front/rear)				1850mm/1750mm
			Drive axle				Reinforced integral 10Ton Axle
			Ground clearance of counterweight				1160mm
			Min ground clearance				200mm
TECHNICAL PARAMETERS			Angle of rotation				360°
			Machine weight				7800kg
			Engine model				YN38GBZ/4102(turbocharged)
			Rated Power				65kw
			Rated Speed				2400r/min
			Hydraulic system working pressure				21Mpa
			Hydraulic system flow				150L/min
			Variable piston pump				71ml/r
			Max Hauling force				12r/min
			Walking speed				25km/h
			Grade Climbing ability				58%/30°
			Tyre model				8.25-16
			Revolution Overdrive Pressure				20Mpa
			Full circle swinging time				5.5s
			Fqt Fuel Quantity				≥6L/h
			Hydraulic Tank Capacity				110L
			Capacity Of The Fuel Tank				110L

By utilizing a piston pump, this agricultural excavator enjoys smooth movement and high working
efficiency. The 360° rotary grab makes our wheeled excavator popular with farmers for loading sugar
canes and timbers.

The interior of the cab is equipped with joysticks, electrical switches, monitoring panels, air conditioners
and radios, etc. The driver's seat can be adjusted according to the driver's requirements. The use of
strong environmentally friendly glass has the characteristics of high strength, UV protection and good
sealing performance. The driver's cab with super wide field of view ensures good visual effects.
OPTIONAL WORKING DEVICE
We provide more optional parts to complete more kinds of work. We provide a variety of work tools
such as grabs, forks, pulverizers, etc. to meet your various application needs. In addition, a variety
of fixtures are provided to optimize the performance of the machine. The auxiliary hydraulic lines
are arranged on the base of the boom, making the auxiliary hydraulic circuit easier to install, thereby
reducing the time, parts and costs required for installing work tools.
WORKSHOP DISPLAY

Our company abides by the business philosophy of "quality first, customer first" to ensure product quality.
We have rigorous production procedures, and each production process is carried out under strict quality
inspection.Only after passing the inspection can they move on to the next procedure. At the same time,
we insist on creating a neat, clean and safe working environment.
OUR ADVANTAGES
1. Competitive Price -- We a Chinese leading manufacturer of Wheel Excavators, Crawler Excavators, Sugarcane
Harvester, Sugarcane Grabber Wheel Loader, and Wood Clamping Wheel Loader with good quality, professional service
and lower price.
2. Quick Response -- Our team is consisted of a group of diligent and enterprising people working 24/7 to respond
client inquiries and question all the time. Most problems can be solved within 12 hours.
3. Fast Delivery -- Normally it will take more than 30 days to produce the ordered machines, while we have a variety
of resources, locally and nation widely, to receive machines in timely manner. In 70% circumstance, we can have an
immediate delivery of regular machines for our clients.
4. Sole Agent wanted -- You may apply our sole sales agent of our factory in your country, if there is no agent yet in
your local area, to open your market working together.

COMPANY PROFILE
As the professional level of users is getting higher and higher, in order to meet the customer's demand
for products, Jingong Machinery constantly innovates and upgrades the products, and optimizes and
improves the products from the professional perspective of future development.
Since its establishment in 1997, Jingong has always been adhering to the business philosophy of "survive
by quality, rely on efficiency through management", put customers first, and develop and manufacture
products that are popular in the market.

---
