Basic Info.
Mould Cavity
Single Cavity
Process Combination Type
Single-Process Mode
Size
According to Customers Requirement
Mould Quality Control
Professional QC
Mould Runner System
Hot or Cold Runner System
Mould Design Software
Ug, Proe, Solidworks CAD, Ect
Mould Cooling System
by Experienced Designer
Mould Operating Mode
Automatically by CNC
Heat Treatment
Nitriding, etc
Transport Package
High Quality Wooden Case
Origin
Huangyan, Taizhou, China
Production Capacity
300sets/Year
Product Description

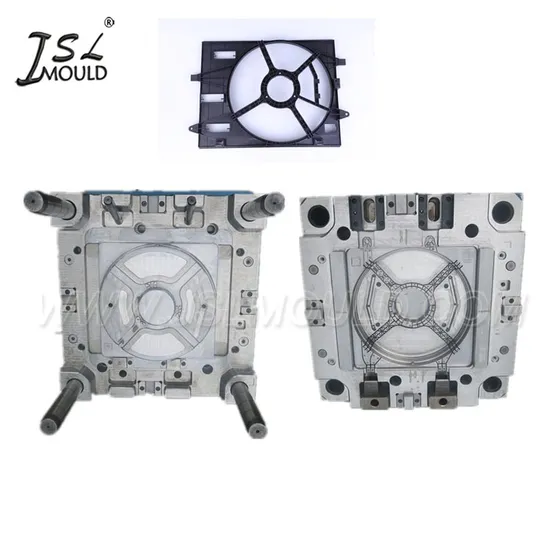

Injection plastic fan shroud mould
Plastic material: abs
Mold Steel: 718
Mould Standard: DME
Injection System: Side gate
Ejector System: Ejector Pin
High quality
Reasonable price
On time delivery
Good After-sale service
Strict quality control
All the mould are automotic.
JSL Mould Quality Control
For the Q/C of mould, there are 3 steps:
1. Mould Material Q/C
- Mould Steel Checking(Hardness, flaw detection)
- Mould Standard Spare Parts Checking(hardness, size, flaw checking)
2. Mould Making Process Q/C
- design checking (part design, mould design, mould engineering drawing)
- checking each part of mould's size after machining, according to 2D drawing
- mould testing(check mould running condition)
3. Check with customer's requirement again before mould shipping.
| Product Name | plastic fan shroud mould |
| Product material | ABS |
| Core& Cavity Steel | 718 |
| Steel hardness: | HRC34-38 |
| Mould Standard | DME, etc |
| Cavity Number | Single |
| Injection System | side gate |
| Ejector System | ejector pin+ejector cylinder |
| mould base | S50C |
| Cycle Time | 50S |
| Tooling lead time | 60DAYS |
| Mould life | 1, 000, 000SHOTS |
| Quality assurance | ISO9001 |
| Specification | According to client' s requirements |
|
|
| Our Advantage | 1. High quality |
| 2. Reasonable price |
| 3. On time delivery |
| 4. Good After-sale service |
| 5. Strict quality control |
| 6. All the mould are automotic. |
|
|
| Offer you | In-time response on letters, telephone calls or fax |
| In-time supply the quotation and mould designs |
| In-time communication on the technical points |
| In-time sending pictures for the mould machining progress and mould finishing schedule |
| In-time mould test and sample delivery |
| In-time mould delivery. |
plastic furniture mould |
| 1. Samples/Drawing & Requirement from you |
| 2. Mould design: we will Communicate& Exchange the opinion with you after you place order. |
| 3. Material Purchase: Steel cutting and Mould base tooling. |
| 4. Assembling. |
| 5. Inspection of mould: following and controlling the tooling processing. |
| 6. Mould testing: We will inform you the date. Than will send the sample' s inspection report& injection parameters with the sample to you! |
| 7. Your instruction & confirmation for shipment. |
| 8. Ready made mould before packing. |
| | |
For more information please contact us.
|
.
>>
