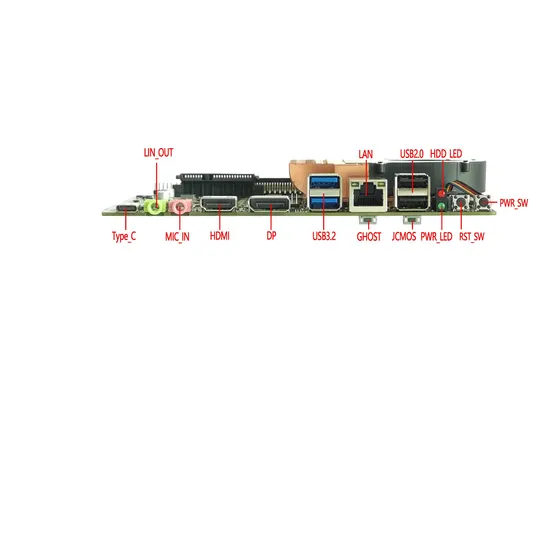

| PC model | OPS-13U | |
| PC size | 165mm(L)*114mm(W)*26mm(H) | |
| CPU processor | Support Intel Raptor Lake 13th gen U/P/H series i3, i5, i7,i9 and other CPU | |
| Memory support | 1*NB-DDR4 SODIMM memory slot, supports 2133/2400/2666/3200 MHz memory, supports up to 32 GB | |
| Power supply | 1*DC_IN | Supports 12V/19V voltage, the inner diameter of the DC head is 2.5MM The motherboard consumes about 60 W at full load. It is recommended to use a 12V 7A or 19V 5A or above power supply. |
| Display function | Integrated Intel(R) UHD Graphics super core graphics card, supports single display, dual display/triple display/quad display copy, dual display/triple display/quad display expansion, supports dual display under SHELL, does not support DOS | |
| 1*HDMI 2.0 interface (mainboard side) | Support 4K resolution 4096/3840*2160@60Hz | |
| 1*DP interface (mainboard side) | Support 4K resolution 4096/3840*2160@60Hz | |
| 1*HDMI 2.0 interface (daughter card side) | Support 4K resolution 4096/3840*2160@ 60Hz | |
| 1*DP interface (daughter card side) | Support 4K resolution 4096/3840*2160@ 60Hz | |
| Internet function | 1*LAN interface | Intel I219V Gigabit network card chip, supports network wake-up and PXE diskless boot function |
| 1*M2_WIFI interface | Support Key-E interface M.2_2230 WIF/Bluetooth module | |
| Hard drive function | 1*NGFF1 (M.2) interface | Supports Key-M interface M.2 2280/2242 hard disk; supports NVME protocol by default, and can change the hardware to support SATA protocol |
| 1*JSATA interface | Supports SATA3.0 signal by default and supports 2.5-inch SSD disk/mechanical hard disk | |
| Sound function | Integrated Realtek ALC 897 HD digital audio decoder, 6-channel high-fidelity audio controller | |
| 1*LIN_OUT interface | Support audio output (green) | |
| 1*MIC_IN interface | Support microphone input (red) | |
| USB function | 2*USB3.2 interface | Rear standard USB3.2 Gen1 interface, maximum transmission bandwidth is 5Gbps |
| 2*USB2.0 interface | Rear standard USB2.0 interface, maximum transmission bandwidth is 480Mbps (60MB/s) | |
| 1*Type-C interface | Standard Type-C interface, only supports USB function and does not support display function | |
| Switch function | 1*PWR_SW 1 button | Switch button |
| 1* RST_SW1 button | Support hardware restart | |
| Other I/O | 1*SIM_CARD card slot | Supports SIM card, SIM card is required when using 3G/4G |
| 1*JCMOS button | Mainboard reset and discharge buttons | |
| 1*OPS interface | Standard 80Pin OPS interface | |
| 1*One-click restore button | Support system one-click restore | |
| 1*LED | Power and hard drive status indicators | |
| Operating environment | Working temperature: -10ºC~60ºC; Working humidity: 5%~95% relative humidity, no condensation | |
| BIOS | AMI BIOS supports power-on, scheduled boot, and intelligent identification of remote power on and off devices. | |
| Watch Dog | Watchdog programming, supports hardware reset function (level 256, 0~255 seconds) | |
| Operating system | Support Windows 11, Windows 10, Kirin system, Tongxin system, Linux, etc. | |
