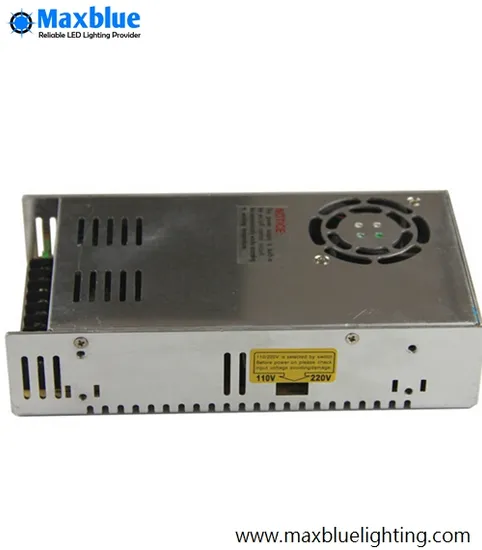

350W High Quality Cheap Price Power Supply for LED Strip

US$20.00 5 Pieces (MOQ)

Basic Info.

Model NO.

MBS-350-12

Driving Method

LED Regulator Voltage

Circuit Structure

PWM Controlled

Certification

CE, RoHS, CCC

Power Supply Mode

Constant Voltage Source

Modulation System

PWM

In-Out

Step-down Type

Power Supply Voltage

AC85-265

Pack Sealing Size

SMD

Brand

ABB

Warranty

>2years

Weight

0.98kgs

Product Demension

215X150X50mm

Package

12.8kgs/16PCS

Transport Package

Standard White Box

Specification

CE, RoHS

Trademark

Maxblue

Origin

China

HS Code

8504401400

Production Capacity

20000

Product Description

Product Description:
350W High quality cheap price power supply for led strip
Product Specification

AC Input	88-132VAC, 170~264VAC 47-63Hz
DC output	DC12V 0~10A
Adjustable range for DC voltage	± 10%
AC Inrush current	Cold-start current 15A/115V 30A/230V
Over Load Protection	105%-150% rated output power
Over Voltage Protection	115%-135% hiccup mode, auto-recovery
Withstand voltage	I/P-O/P: 3Kv I/P-FG: 1.5KV O/P-FG: 0.5KV 1minute
LINE REGULATION	± 0.5%
Load REGULATION	± 1%
Efficiency	82%
Working temperature	-10º C - +50º C, 20%~90% RH
Safety Standards	Design refer to U11012, TUV EN60950-1 approved
EMC Standards	Design refer to EN55022 Class B, EN61000-3-2,3 EN61000-4-2,3,4,5,6,8,11, ENV50204
Connection Way	7pins 9.5mm
Weight	0.98Kg

Product Feature:
Universal AC input
Small size, High power density
Fixed switching frequency at 47-63Hz
Protections: Short circuit/Overload/Over voltage
Protection: Short circuit / Over load protection/ Over voltage protection
Indoor use, Non-waterproof
IT IS IDEAL FOR LED STRIP CONNECTING
.
