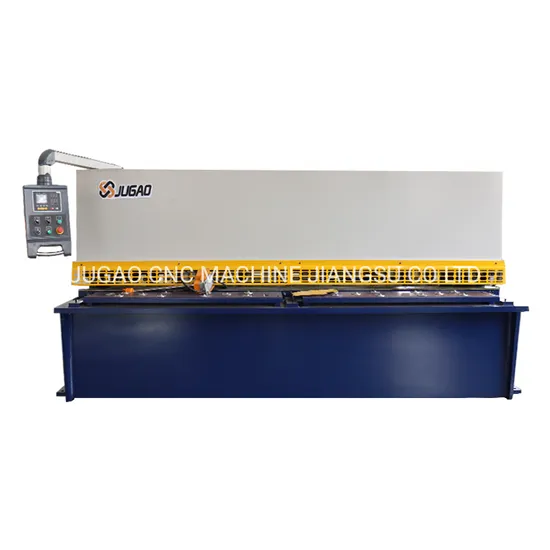

Jugao Hydraulic Metal CNC Swing Beam Shearing Machinery Iron Plate Cutting Machine

Product Description

JUGAO hydraulic metal cnc swing beam shearing machinery new iron plate cutting machine 1. Hydraulic transmission, pendulum-type tool holder. The overall welding of the frame is hard and durable, and the use of a nitrogen cylinder returns smoothly and rapidly.
2. It has the function of stepless adjustment stroke. The amount of upper and lower blade edge clearance is adjusted by the handle, and the gap of the blade is even and rapid.
3. NC control system and position encoder, inverter, closed-loop control system, speed, high positioning accuracy, good stability, can accurately ensure the accuracy of the back gauge displacement size, while the CNC system has precision compensation and automatic detection A variety of additional features.
Technical parameter

model	Shear plate thickness	Shearable plate width	Number of trips	Back gauge range	Shear angle	main motor power
	mm	mm	min -1	mm	°	kw
6×2500	6	2500	20-25	600	0.5-1.5	7.5
6×3200	6	3200	16-25	600	0.5-1.5	7.5
6×4000	6	4000	14-25	600	0.5-1.5	7.5
6×5000	6	5000	10-15	800	0.5-1.5	7.5
6×6000	6	6000	10-15	800	0.5-1.5	11
8×2500	8	2500	18-25	600	0.5-1.5	11
8×3200	8	3200	16-25	600	0.5-1.5	11
8×4000	8	4000	12-25	600	0.5-1.5	11
12×2500	12	2500	12-20	600	0.5-2	15
12×3200	12	3200	12-20	600	0.5-2	15
12×4000	12	4000	12-20	600	0.5-2	15
16×2500	16	2500	10-15	800	0.5-2.5	18.5
16×3200	16	3200	10-15	800	0.5-2.5	18.5
16×4000	16	4000	8-15	800	0.5-2.5	18.5
20×2500	20	2500	8-12	800	0.5-2.5	30
20×4000	20	4000	8-12	800	0.5-2.5	30
25×2500	25	2500	6-10	800	0.5-3.5	37
25×3200	25	3200	6-10	800	0.5-3.5	37
25×4000	25	4000	6-10	1000	0.5-3.5	37
32×2500	32	2500	6-8	1000	0.5-3.5	45
32×3200	32	3200	6-8	1000	0.5-3.5	45
