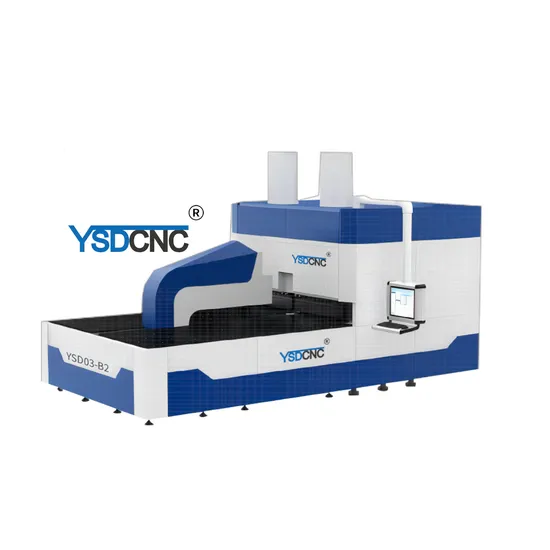

1200/1600/2000/2500 mm Smart Auto Bending Machine Automatic Servoelectric Sheet Panel Metal Bender Flexible Bending Center

Product Description

Product Description 1. Industry 4.0 architecture, which can be smoothly upgraded, has the advantages of fast speed, high consistency of
workpiece forming, low power consumption, simple daily maintenance and low cost.
2. High degree of automation, simple operation, and low technical requirements for operators.
3. No mold making is required, and complex shapes (right angles folded up or down, non-right angles, etc.) can be
designed at will and produced at any time. The intelligent flexible bending center is a high-tech product developed and produced for the sheet metal industry to
improve production efficiency, reduce labor intensity, reduce labor costs, and enhance corporate image. It has been
widely used in filing cabinets, electrical cabinets, doors, tool cabinets, kitchen utensils, ventilation, air conditioning,
purification, education, experimental equipment and other industries. Details Images Specification

Model	YSD03-A2	YSD03-B1	YSD03-B2	YSD03-B2	YSD03-C2	YSD03-D2	YSD03-E2
Fastest bending speed	0.2 sec/knife	0.2 sec/knife	0.2 sec/knife	0.2 sec/knife	0.3 sec/knife	0.5 sec/knife	0.6 sec/knife
Maximum bending length (mm)	100*100	140*125	140*125	160*125	200*150	250*150	320*150
Maximum bending height (mm)	170/210	170/300	170/300	170/300	170/300	170/300	170/210
Feeding method	Pressure arm type	Suction cup type	Pressure arm type	Pressure arm type	Pressure arm type	Pressure arm type	Pressure arm type
Feeding table	Brush, universal ball	Brush, universal ball	Brush, universal ball	Brush, universal ball	Brush, universal ball	Brush, universal ball	Brush, universal ball
Lubrication lines	copper tube	copper tube	copper tube	copper tube	copper tube	copper tube	copper tube
Minimum bending thickness (mm)	0.15	0.15	0.15	0.15	0.15	0.15	0.15
Minimum size of four-sided molding	200*280mm	200*280mm	200*280mm	200*280mm	200*280mm	200*280mm	200*280mm
Minimum size of single side molding	150mm	150mm	150mm	150mm	150mm	150mm	150mm
Rated voltage	380V	380V	380V	380V	380V	380V	380V
Maximum bending thickness (mm)	Stainless steel 1.0 Aluminum plate 1.2 cold plate 1.5	Stainless steel 1.2 cold plate 2.0 Aluminum plate 2.5	Stainless steel 1.2 cold plate 2.0 Aluminum plate 2.5	Stainless steel 1.2 cold plate 2.0 Aluminum plate 2.5	Stainless steel 1.2 cold plate 2.0 Aluminum plate 2.5	Stainless steel 1.2 cold plate 2.0 Aluminum plate 2.5	Stainless steel 1.2 cold plate 2.0 Aluminum plate 2.5
Overall dimensions (cm)	L*W*H 310*150*280	L*W*H 350*200*280	L*W*H 450*200*280	L*W*H 450*250*280	L*W*H 510*270*280	L*W*H 570*310*280	L*W*H 700*380*280

Our Company Nanjing Shanduan "YSDCNC"currently has more than 300 employees, including 30 sales engineers and 35 service
engineers. The factory covers an area of 26,000 and is equipped with 3 sets floor-standing boring and milling machines,
6 sets gantry planers, 10 sets radial drilling machines, and CNC processing.There are 25 sets centers, with a total of
more than 200 sets large and small production equipment. Our company has passed TUV, SGS, BV, CE and other certifications. Quality assurance, EU approval, the products sell
well in more than 100 countries.
Nearly 30 years of expertise in the manufacture of press brakes and guillotines machines give us the security that is
needed for future challenges. High standards of quality and a team with the best training and knowledgeare a major
condition for our success. Our products are the result of a continued focus on improving internal processes underpinned
by high quality levels, that result in the recognition of YSDCNC' S machines as quality garantee equipment.
1.Our wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time.
2. All the spare parts of the machine were covered by the some soft materials mainly using pearl wool.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack, convenient to handing and transport. FAQ Is it in stock?
Hello, we have a large amount of stock for standard models, and the regular delivery time is 0~7 days. Customized
models can be completed in 7-30 days (depending on the size and voltage of the machine, the time is different.)
How to buy?
Our company supports a variety of transaction methods, and you can deliver the goods to your door with a deposit
in advance.Various transaction methods such as payment to delivery or delivery to the factory. Consult for details: +8618851629789
How about the after-sales service?
15 minutes quick feedback mechanism. 1-to-1 technical guidance. One year warranty and lifetime service. Free
replacement of non-wearing parts during the warranty period, and lifelong online technical support provided outside
the warranty period. The factory provides spare parts, and the factory installation video provides after-sales service.
How about your quality?
Our company's products are produced according to national standards, and have passed TUV, SGS, BV, CE and other
certifications. Quality assurance, EU approval, the products sell well in more than 100 countries.
What other services do you have?
Free counter, free customs declaration, free installation training for export, free online technical guidance.

---
