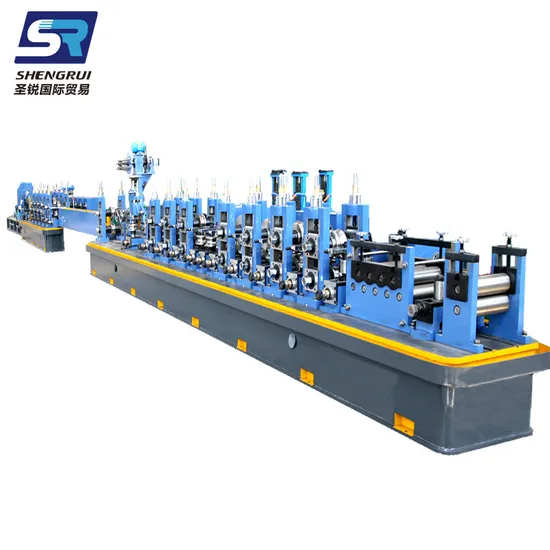

Round Square Rectangular Shaped Galvanized Steel Customized Tube High Frequency Welded Pipe Making Machine

Product Description

Round Square Rectangular Shaped Galvanized Steel Customized Tube High Frequency Welded Pipe Making Machine
Equipment Specifications

Item	Wall Thickness (mm)	Max. Speed (m/Min)	Main Motor (kw)	H.F.Welder (kw)	Width of Rolled Strip	Thickness of Rolled Strip
ZY-HF16	0.3~1.0	90	22	60	22~55mm	0.3~1.0mm
ZY-HF20	0.4~1.5	90	45	100	30~90mm	0.4~1.5mm
ZY-HF32	0.6~1.8	90	75	100	40~120mm	0.6~1.8mm
ZY-HF45	0.6~2.0	80	90	150	50~160mm	0.6~2.0mm
ZY-HF50	0.8~3.0	70	132	200	60~200mm	0.8~3.0mm
ZY-HF60	0.8~3.0	70	90*2	200	60~240mm	0.8~3.0mm
ZY-HF76	1.2~4.0	70	132*2	300	90~280mm	1.2~4.0mm
ZY-HF89	1.2~4.5	70	132*2	300	100~330mm	1.2~4.5mm
ZY-HF114	1.5~4.0	55	160*2	300	100~400mm	1.5~4.0mm
ZY-HF125	1.5~6.0	50	200*2	400	150~410mm	1.5~6.0mm
ZY-HF165	2.0~6.0	50	200*2	500	150~520mm	2.0~6.0mm
ZY-HF219(6mm)	2.0~6.0	40	200*2	500	350~700mm	2.0~6.0mm
ZY-HF219(8mm)	3.0~8.0	40	250*2	600	270~700mm	3.0~8.0mm

Zhangjiagang City Zhangyun Machinery Manufacturing Co., Ltd. is established in 2002, manufacturer of elevator guide rail processing production line machinery, cold roll forming line machinery and high frequency tube welding line machinery.
Quality Oriented,Technology Innovation is our core concept. Each component of our machines is examined and qualified before assembling; each set of our equipment is fully test run before delivery.
FAQ
1.Q: Are you manufacturer or trading company?
A: We are manufacturer. And we have our own import & export rights.
2.Q: What is the MOQ?
A: One set.
3.Q: Do you provide installing and debugging overseas?
A: We send engineers overseas for installation and debugging under client's request. On line guiding and technical support is for life time.
4.Q: Can you make the machines according to my design or prototype?
A: Yes. We have an experienced engineering team for working out the most suitable design and production plan for the machines you are going to book with us. We can also make the machines according to your design or prototype.
5.Q: How does your factory do regarding quality control?
A : We have Quality Management System Certificate GB/T9001-2016/ISO9001:2015. Each component of our machines is examined and qualified before assembling; each set of our equipment is fully test run before delivery.
6.Q: How can I trust you that machines have passed test running before shipping?
A: 1) We record the test running video for your reference.
2) You are welcomed to observe the test running in our factory.
7.Q: What about your after-sale service?
A: 1) We have an after-sale service team for each customer, including GM, sales Rep, chief engineer, and main engineers for design and making your machines.
2) Overseas after-sale service is available.
3) We provide life time online technical support.
8. Q: What should I do if I just start a new business?
A:Contact us immediately, we provide free consultant pre-sales service.
We are domestic leading factory in elevator guide rail processing equipment field. We are familiar with our machines and we have many successful user cases. We know the development history and the latest trends. We can make the most reasonable proposal for you.
9. Q:Can I visit you factory to check machines on-site?
A: We are manufacturer, we have our own R&D department and workshops for more than 20years. We warmly welcome your visit and checking machines in our factory.

---
