Built-in Calibration 3D Electronic Compass Digital Compass Magnetic Compass Sensor Module Digital Compass Sensor Magnetic Compass RS485 RS232 Magnetic Compass

Product Description

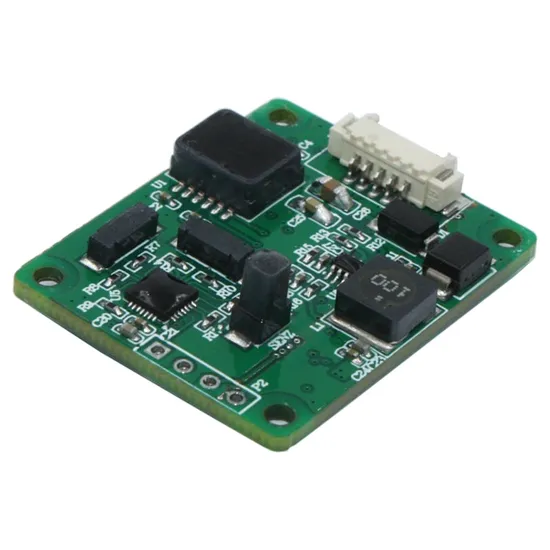

ECB600 Built-in Calibration 3D Electronic Compass Digital Compass Magnetic Compass Sensor Module
Main Features
- Support Easy and Fast User Calibration, Easy to Use
- Heading Accuracy: 0.3° RMS (25°C, Tilt Angle<30°)
- Pitch and Roll Accuracy: ±0.1° (25°C, Full Range)
- Hard/Soft Magnetic Compensation, Tilt Compensation
- Wide Power Supply: 5~24V±0.3VDC
- Interface: RS232 (default), or RS485 / LV-TTL (optional)
- Wide Working Temperature: -40~+85°C
- Small Size: 33*27*10mm
Brief Introduction
ECB600 digital compass module is a high accuracy 3D digital compass module that provides accurate heading and tilt readings, SkyMEMS's advanced hard and soft iron correction algorithms allow for compensation of magnetic distortions inherent in the user's system, resulting in reliable and consistent readings, and the user calibration is easy and fast, ECB600 can do user calibration by receiving commands sent by user, and user calibration can be done without connecting PC, it is easy and flexible.
ECB600 integrates 3-axis magneto-inductive sensors, 3-axis MEMS accelerometer and central processing unit to calculate the heading data in real time and compensate the heading when it has inclination angle. ECB600 has multiple interfaces, and it enjoys small size, high accuracy, low power consumption and low cost, which is very convenient to be integrated into different systems, it has been widely used in laser rangefinders, antenna positioning, buoy, unmanned systems and marine navigation fields, etc.
Technical Specifications

Parameters	Value	Comments
Heading
Range	0~360°
Accuracy	0.3° RMS	25°C, tilt angle<30°
	0.5° RMS	25°C, tilt angle<60°
	1.0° RMS	25°C, tilt angle<85°
Resolution	<0.1°
Tilt Performance Specs
Range	roll: ±180º , pitch: ±85º
Accuracy	0.1° RMS	25°C
Resolution	< 0.01°
Electronical Performance
Input Voltage	5~24V±0.3VDC
Current	12mA@12VDC
Power Consumption	<0.2W
Startup Time	≤500ms
Environment Condition
Working Temperature	-40~+85°C
Communication Protocol
Communication Mode	Interface: RS232 (default), or RS485 / LV-TTL	settable
Baud Rate	2400~115200	settable
Maximum Output Speed	100Hz	ODM supported
Physical Parameter
Dimensions (L x W x H)	33*27*10mm
Weight	around 8grams

Typical Applications
-laser rangefinders
-antenna positioning
-buoy
-unmanned systems
-marine navigation fields
