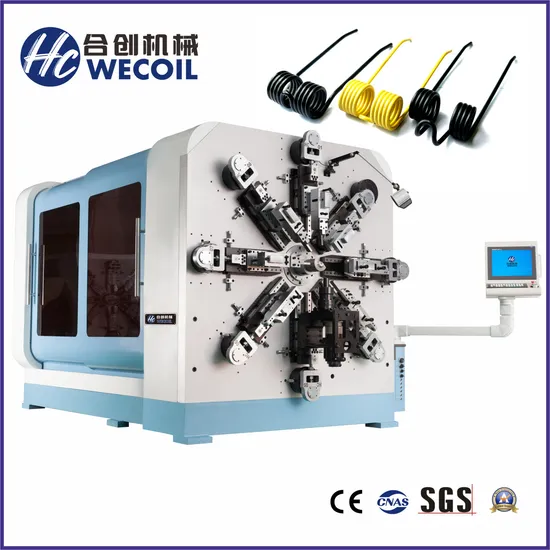

WECOIL HCT-1280 8mm 12-16 axis CNC Camless Agricultural Torsion Spring Machine

Product Description

HCT-1280WZ 12 axis Camless CNC Versatile Spring Rotating Forming Machine, is composed by Taiwan computer system and Japan servo motor special designed with no rocker arm and camless, the slide base is separately controlled by eight servo motor, Feeding axis, Quill rotating axis, Wire rotating axis and Spinner axis.
The crank connecting link system are include eight knife rest, eight knife rest are separately driven by eight Yaskawa servo motor through VRB reducer, no influence from each other, make the spring forming handy and easy. Controlled the feeding and wire rotation system synchronous through CNC program, at the same time the feeding accuracy can be reach within 0.1mm during wire rotation.It composed of crank connecting link system, feeding and rotating system, coiling straightening system and quill system. It can install the device of hydraulic pressure scissors, low noise; the damage is zero on mandrel and machine. Largely increased the spring making range, it is precise, stable and easy to operate.
It is suitable for making kinds of tension spring, torsion spring, compression spring, scroll spring, tower spring, flat wire spring and such highly difficult springs.
Certificates
Packaging
Please feel free to consult us about your project, thank you!

---
