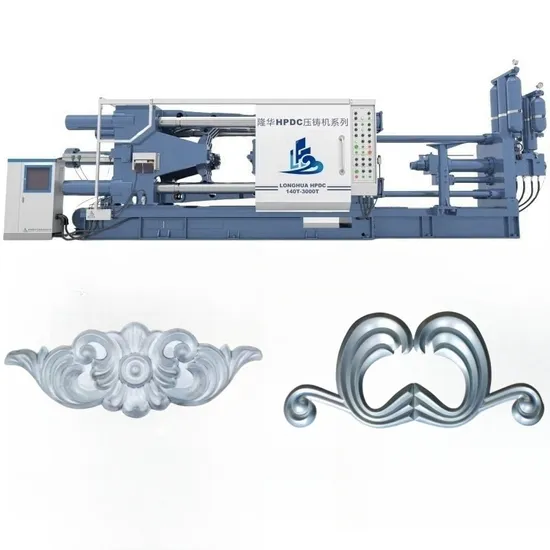

Lh-Hpdc 400t Factory Supply Manufacturer High Precision Pressure Horizontal Full Automatic Alloy Cold Chamber Die Cast Molding Machine Industrial

Product Description

ITEMS	Unit	Specification
Clamping Force	KN	4000
Opening stroke	mm	520
Die thickness(Min--Max)	mm	250-700
Space between tie bars	mm	620*620
Ejector stroke	mm	110
Ejector force	KN	160
Injection position(0 as center)	mm	0,-175
Injection force(intensification)	KN	410
Injection stroke	mm	480
Plunger diameter	mm	¢60 -- ¢80
lnjection weight(aluminum)	Kg	4.5
Casting pressure (intensification)	MPa	145/106/81
Max. casting area(40Mpa)	CM2	875
Injection plunger penetration	mm	180
Diameter of pressure chamber flange	mm	110
Height of pressure chamber flange	mm	10
Max.working pressure	MPa	14
Motor power	Kw	18.5
Dimensions (L*W*H)	m	6.7*1.9*2.88
Machine lifting reference weight	T	15
Oil tank capacity	L	810

Longhua Company Profile
Longhua Die Casting Machine was founded in 1982. It is a national high-tech enterprise specializing in the design, R&D, manufacturing, and sales of horizontal cold chamber J11 series die-casting machines, die-casting robots, die-casting molds, and die-casting peripheral equipment.
On December 10, 2005, Wang Jinshan, Secretary of the Anhui Provincial Party Committee, pointed out when inspecting Longhua that "strengthen science and technology, establish brands, value talents, and independent innovation."
Since 2006, we have established a production base for high-speed and high-precision AI die-casting machines and die-casting robots at the Longhua headquarters in cooperation with "Anhui Institute of Science and Technology", "Hefei Institute of Materials Science, Chinese Academy of Sciences" and other large institutes.
Longhua's die-casting machine and die-casting robot projects have successively won the State Intellectual Property Office: "15 invention patents", "two national high-tech product certificates", "one new product certificate in Anhui Province", "the first set of major technologies in Anhui Province" One equipment certificate, "Enterprise Intellectual Property Standard Implementation Certificate", "Vice President Unit of Anhui Chamber of Commerce for Import and Export", "Vice President Unit of Anhui Cross-Border E-Commerce Association", "1 Science and Technology Small and Medium Enterprise Certificate" , "2 CE certification certificates" and other honors.
Longhua die-casting machines are mainly used in industry/road/railway/aviation/aerospace/agricultural machinery/new energy vehicles/cars/aircrafts/aircraft carriers/ships/motorcycles/mopeds/elevator pedals/AT/LED lamp housings/radiators/furniture /Aluminum art/Copper art/Magnesium alloy products/Copper alloy products/Aluminum alloy products/Zinc alloy products/Non-ferrous metal deep processing and other high-precision die-casting products.
Longhua's main domestic customers include: American Irek Group (Taiwan Wangxu Group), Anhui (Shenzhen) TAIFOOK Mechanical and Electrical Group, Huawei Group, Yuchai Group, Weichai Group, Dayang Motorcycle Group, FAW Group, Second Automobile Group, GAC Group, BYD Group, Great Wall Group, Liugong Group, Wolong Group and other enterprises.
Longhua's quality tenet: "Today's quality, tomorrow's market"
Domestic intelligent die-casting machines and die-casting robots help the country become a technological power and make intelligence simpler.

---
