Tubular Slitting Rope Opener Fabric Back Sewing Machine

Product Description

Tubular slitting rope opener fabric back sewing machine
Specification:

Model	HTS-2600
Working width	2400mm
Voltage	380V/50HZ
Sewing speed	0-40m/min
Installed power	5KW
Machine weight	1600KG

Application:
- The tubular back sewing machine is major used for tubular knit fabric after pre heat setting process, with the folding and sewing unit, fabric will resewing to a tubular form, with the help of this process, fabric will achieve a uniform dyeing in the dyeing machine.
Machine Process:
Open width Fabric Entry → Folding → Sewing → Tubular fabric exit
Features:
- Touch screen controlled, fully automatic tubular sewing
- Equipped with fabric inlet tension adjustor device
- Automatic stop during machine running without fabrics

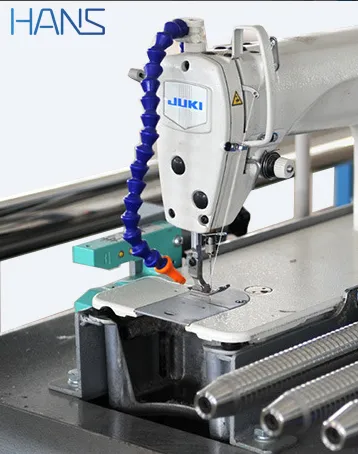

- Sewing device: Juki
- PLC, Inverter: Delta
- Edge width adjustable
- Infrared centering device control the centering process of fabrics, make sure fabric running in the center area of the machine
- This tubular sewing machine is equipped with 3 spinder spreader, make sure good fabric edge opening result before the sewing device
- Speed adjustable
- Photo electrical device for automatic edge tracing
- High automation grade, low fault rate
- Air pressure: 6kg/cm3

---
