B18.31.1M Metric Continuous Threaded Studs Staninless Steel Stud Bolt ASTM A193 B8M

Product Details

Product Description

Product Description
Name:Material:Standard:Finish:Table:Thread:High Light:

Metric Continuous-Threaded Studs	Stainless Steel
ASME/ANSI B18.31.1M	Plain
Table1	Coarse Teeth
Metric Continuous Threaded Studs, Stainless Steel Threaded Stud Bolt, A193 B8M Threaded Studs

B18.31.1M Metric continuous-Threaded studs / Staninless Steel ASTM A193 B8M Stud Bolt
Studs come in a variety of sizes and materials. These studs are used in all aspects of construction and mechanical engineering. They are made of materials such as stainless steel, aluminum, nylon and carbon steel. Various types of studs are used for specific products, each requiring specific materials.
There are two types of double-headed bolts in common use (also known as all-thread studs), with two types of threads: coarse threads with M and nominal diameter, and fine threads with M and nominal diameter x pitch.
Drawing:
Size:

d	M5	M6	M8	Ml1o	M12	M14	M16	M20	M22	M24
p	0.8	1	1.25	1.5	1.75	2	2	2.5	2.5	3
c max	1.6	2	2.5	3	3.5	4	4	5	5	6
M27	M30	M36	M42	M48	M56	M64	M72	M80	M90	M100
3	3.5	s	4.5	5	5.5	6	6	6	6	6
6	7	8	g	10	11	12	12	12	12	12

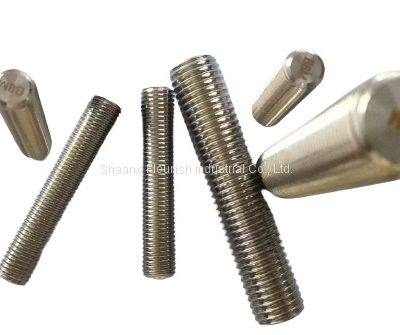

Photos:
Material:
A193.B8M is an American Standard stainless steel for high temperature bolts, Executive Standard: ASTM A193/A193M-2017
A193.B8M stainless steel is particularly resistant to corrosion, atmospheric corrosion and high temperature strength due to the addition of Mo, and can be used under severe conditions; excellent work hardening (non-magnetic); excellent high temperature strength, mainly used in seawater equipment, chemical, dye, paper, oxalic acid, fertilizer and other production equipment; photography, food industry, coastal area facilities, ropes, CD rods, bolts, nuts

---
