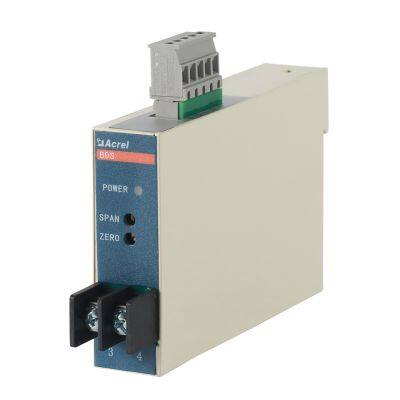

BD series electric transducer is a kind of device which can isolate and transmit electric parameters such as current,voltage
frequency, power, power factor or temperature, resistance and so on non-electrical parameters, into linear DC analog signal or digital signal. They can directly connect with the pointer table, digital meters, also can connected with automatic control devices (eg PLC), a variety of A / D converter, and the computer system.
Technical parameters
| Value
|
Accuracy class
| 0.5、0.2
|
Input
| Nominal value
| CurrentAC、DC 1A、5A；
VoltageAC、DC 100V、300V、500V
|
Overload
| Continual 1.2 times, Instantaneous current 10 times/5s; Instantaneous voltage 2 times/30s;
|
Consumption
| ≤0.3VA Current input； Voltage input，
≤0.3VA100V ，≤0.6VA300V ，≤1VA500V
|
Frequency
| 50±5Hz，60±5Hz
|
Output
| Normal value
| DC:4-20mA、0-20mA, 0-5V, 0-10V And so on
|
Load resistance
| Current output≤600Ω
Voltage output≥1000Ω
|
Ripple content
| | Response time
| ≤400ms
|
Power supply
| Voltage
| AC85-265V、DC100-350V
|
Consumption
| AC current, voltage≤3VA，
Power≤4VA
|
Insulation resistance
| ≥100MΩ
|
Isolation voltage
| Among input//output//power supply
2.0kV/1min, 50Hz
|
Temperature modulus
| ≤200ppm/℃
|
Environment
| Temperature
| work-10℃~+55℃ Storage: -25℃~+70℃
|
Humanity
| ≤90%RH(In the place without dew and corrosive gas)
|
Altitude
| ≤2000m
|
Fix mode
| (Rail, or fix to cubicle with bolt)
|
