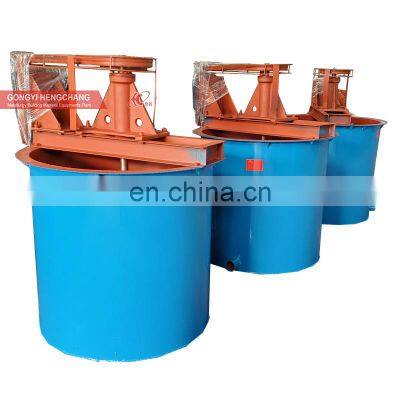

Hot Sale Cil and CIP Machine Agitation Leaching for Gold Processing PlantProducts DescriptionCarbon-in-pulp (CIP) is the sequential leach then absorption of gold from ore. During the CIP stage, pulp flows through severalagitated tanks where sodium cyanide and oxygen have been added to dissolve gold into solution. In the absorption stage, this solution flows through several agitated tanks containing activated carbon. Gold absorbs onto the activated carbon, which flows countercurrent to the pulp, while screens separate the barren pulp from the gold-loaded carbon.Carbon-in leach (CIL) is a simultaneous leach and absorption process. The simultaneous leach and absorption phases of the CIL process were developed for processing gold ores that contain preg-robbing materials such as natural absorptive carbon.These reduce the gold yield by attracting gold meant for the activated carbon.Simultaneous leaching and absorption help minimize the problem.No.ItemBrandNotes1Vibrating FeederHengchang2Jaw CrusherHengchang3Jaw CrusherHengchang4Ball MillHengchang5ThickenerHengchangModel choosen depending on capacity6Leaching TankHengchang7Air PumpHengchang8FilterHengchang9Electrolysis MachineHengchangCarbon-in-pulp (CIP) is the sequential leach then absorption of gold from ore. During the CIP stage, pulp flows through severalagitated tanks where sodium cyanide and oxygen have been added to dissolve gold into solution. In the absorption stage, this solution flows through several agitated tanks containing activated carbon. Gold absorbs on to the activated carbon, which flowscounter-current to the pulp, while screens separate the barren pulp from the gold-loaded carbon.In the CIL (Carbon in Leach) or CIP (Carbon in Pulp) plants while the precious metals are being dissolved by the cyanide solutionin the large volume tanks the dissolved metals are adsorbed by the active carbon. These processes are generally preferred for therelatively high grade and lower reserve ore types with very fine graded precious metals..The major difference between the CIL and CIP processes is; during the CIL process both cyanide leaching and carbon adsorption take place in the same tanks but in the CIP process first leaching occurs in the first couple of tanks then carbon adsorption take place in the following tanks while leaching continues. In all of these tanks agitation and air sparging is available.Leaching SystemAfter the ore pulp adding cyanide, it will be pumped to leaching tank, usually we adopts 8 leaching tanks, installed in stair-stepping, the toppest two is preleaching tank, will add actived carbon from lowest one, then use carbon lifting pump and carbon screen to lift the gold carried carbon one by one till highest. After leaching, gold mud in grade about 30-40% will feed into electrolysis machine or melting furnace to separate gold and carbon, after this step, the carbon can be recycled by acid and water washing tank. At last the gold grade will be at 98% above.Thickening SyetemAfter ball mill grinding, the ore pulp will be feed into thickner to dewater to achieve proper density to go next step leaching.Under the thickner, there is enough space to build several warehouse and install a chemical mix tank.Company ProfileHengchang headquarters is located in the industrial park in Gongyi City. It covers a total area of 150,000 square meters,including 100,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 300 workers, including more than 20 middle and senior technicians. Hengchang is mainly focus on 4 series products: stone crusher machines, sand making equipment,powder grinding mills, mineral processing equipment and their spare parts. Every year, Hengchang can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.Our customers / servicesA.Pre-sale services:Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments. 1.Select equipment model; 2.Design and manufacture products according to clients' special requirement; 3.Train technical personnel for clients;B.Services during the sale:Respect clients, devote ourselves to improving the total value of clients: 1.Pre-check and accept products ahead of delivery; 2.Help clients to draft solving plans;C.After-sale services:Provide considerate services to minimize clients' worries: 1.Assist clients to prepare for the first construction scheme;2.Install and debug the equipment; 3.Train the first-line operators; 4.Examine the equipment; 5.Take initiative to eliminate the troubles rapidly; 6.Provide perfect service;7.Provide technical exchanges...(cip gold processing plant / cil gold processing plant / cil cip gold processing)ModelTank Spec. Diameter × Height(mm).Effective Volume (m3)Impeller Rotation Speed (r.p.m)Impeller Diameter (mm)Power (kW)Tank Weight (kg)Total Weight (kg)LT2.0×2.52000×25006529092.216092190LT2.5×3.152500×315013.1493524503180LT3.0×3.153000×315018.93431130435304260LT3.0×3.53000×35002132984400LT3.15×3.553150×355024126035104560LT3.5×3.53500×3500305213105.535605110LT3.55×4.03550×400033.64343205100LT4.0×4.54000×4500483517507.564957652LT4.5×5.04500×500071.571750875210990LT5.0×5.65000×56009831204611889614422LT5.5×6.05500×600011221001263218912LT6.5×7.06500×7000195212400221802026100LT7.0×7.57000×7500245.4212400222063030212LT7.5×8.07500×8000268.6232900222271032989LT8.0×8.58000×850034218.53300303072042695LT8.5×9.08500×900043518.534363431046852(cip gold processing plant / cil gold processing plant / cil cip gold processing)Our Workshop1.We are factory and be able to give you the lowest price than market one; 2.Our products have been exported to over 80 countries and widely used in global mining and construction industry; 3.We have a professional after-sale service team to promptly and thoroughly solve your problems; 4.Provide free process design.Packaging Details:Standard export packing, Spare parts in wooden case, big machines loaded in container,large machines use nude packing, cover with plastic cloth. We export through QingdaoPort, also can be nominated by customer. We have superior cargo agent to arrange thesea shipment for each client, competitive price, secure transportation.Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 10 to 20working days.FAQQ: For providing you the suitable quotation we need to know the following information:A:1. What is the raw material?2. What is the capacity per hour you required ?3. What is the maximum input size of the raw material ?4. What is the final briquettes size and shape you want? Once we get your answers, I can provide you the best quotation immediately.Remarks: The price will depend on different models.Q: What about Warranty of the products ?A: Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in norma operation,we will at our discretion replace or repair the defective parts freely.
>>
