Basic Info.
Certification
QS, GMP, ISO9001:2008, CE
Application Field
Agriculture
Cutting Length
7-35mm(Adjustable)
Engine Power
192kw(260HP)
Specification
7500*3090*4750mm
Origin
Taian City, Shandong Province, China
Production Capacity
200 PCS/ Month
Product Description
1. Features:

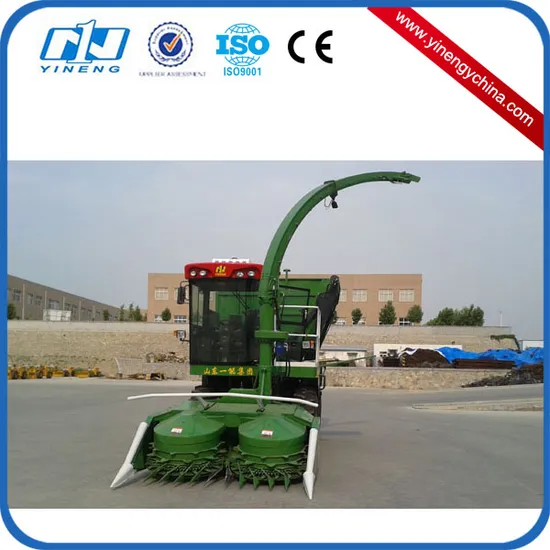

Using the Germany champion's disc technique vertical cutting platform, work width 3 meters,the largest in China..
High-power YTO engine, 260 horsepower output, enough reserve power, reliable, low fuel consumption;
Adopt the operating system of electro-hydraulic control and CVT, electronic header, which is convenient for driver to operate;
Cast spout is in the way of rotating turbine, can be controlled wirelessly and remotely by handle; easy for the car-following operation;
Adjust the cutting length of the materials in multi-polar, The unique grain crushing and scrubbing device, straw rubbing rate is more than 95%, grain crushing rate is more than 90%.
2. Main Technical Parameters:
| Items | Parameters |
| Operation way | Auto-run unlevel harvest |
| Cutting table type | vertical cylinder |
| Operation Range | 3000mm |
| Operation speed | 6-10km/h |
| Efficiency | 30-80T/h |
| Cutting Length | 7-35mm(adjustable) |
| Loss rate | ≤3% |
| Min cutting height | ≤150 |
| Engine Power | 192kw(260hp) |
| Dimension | 7500*3090*4750mm |
| Overall weight | 8600kg |
