Basic Info.
Standard
ASTM, JIS, GB, AISI, DIN, BS
Standard.
ASTM, JIS, GB, AISI, DIN, BS
Material
Q195/Q235/Ss400/SPHC/SAE1006
Transport Package
Standard Transportation, Standard Sea Package
Production Capacity
50000/Month
Product Description

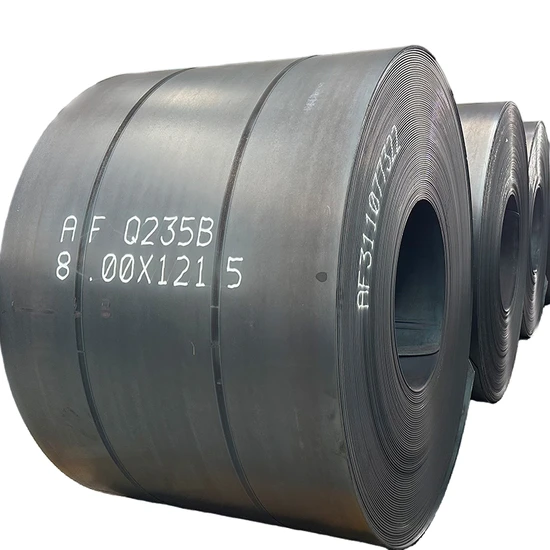

HOT ROLLED STEEL COIL
Hot-rolled products have excellent properties such as high strength, good toughness, easy processing and good weldability, so they are widely used in manufacturing industries such as machinery, construction, machinery, boilers, and pressure vessels.
Applications:
(1) After annealing, it is processed into ordinary cold rolling;
(2) The galvanizing unit with the annealing pretreatment device processes galvanizing;
(3) A panel that basically does not require processing.Product Description
| Product Name | Hot rolled steel coil |
| Thickness | plate:0.35-200mm strip:1.2-25mm |
| Length | 1.2m-12m or according to customer's special request |
| width | 610,760,840,900,914,1000,1200,1250mm |
| Tolerance | Thickness: +/-0.02mm, Width:+/-2mm |
| Material grade | Q195 Q215 Q235 Q345 |
| SS490 SM400 SM490 SPHC SPHD SPHE SPHF |
| SEA1002 SEA1006 SEA1008 SEA1010 |
| S25C S35C S45C |
| 65Mn |
| SPHT1 SPHT2 SPH3 SPH4 |
| Others as your requirement |
| Surface | iron gray (low carbon plate), brown (special alloy plate, the high carbon plate), partial ochre (weather resistance), with temperature oxidation pattern, than manufacture rough surface |
| Standard | ASTM,DIN,JIS,BS,GB/T |
| Certificate | ISO,CE, SGS,BV,BIS |
| Payment terms | 30% T/T deposit in advance, 70% T/T balance within 5 days after B/L copy, 100% Irrevocable L/C at sight, 100% Irrevocable L/C after receive B/L 30-120 days, O/A |
| Delivery times | Delivered within 30 days after the receipt of deposit |
| Package | tied up with steel strips and wrapped with water proof paper |
| Application Range | Widely used in ship, automobile, Bridges, buildings, machinery, pressure vessels and other manufacturing industries |
| Advantages | 1. Reasonable price with excellent quality |
| 2. Abundant stock and prompt delivery |
| 3. Rich supply and export experience, sincere service |
Hot-rolled coils are made of slabs as raw materials, and are made into strips by rough rolling mills and finishing mills after heating.
The hot steel strip from the last rolling mill of the finishing rolling is cooled to the set temperature by laminar flow, and is coiled into a steel coil by the coiler.
The finishing line (leveling, straightening, cross-cutting or slitting, inspection, weighing, packaging and marking, etc.) is processed into steel sheets, flat rolls and slitting steel strip products. Detailed PhotosHot-rolled coils are made from slabs, which are heated and then rolled into strips by rough rolling mills and finishing rolling mills. The high-temperature steel strip coming out of the finishing mill is cooled to the set temperature by laminar flow and wound into a coil by a coiler. Finishing lines for steel plate, flat coil and slitting strip products (leveling, straightening, cross-cutting or slitting, inspection, weighing, packing and marking, etc.).
Hot-rolled steel products are widely used in manufacturing industries such as ships, automobiles, bridges, construction, machinery, and pressure vessels due to their excellent properties such as high strength, high toughness, easy processing, and excellent weldability. Therefore, there is a huge demand for HRC in the market.
Classification:
Common carbon plate, excellent carbon plate, low alloy plate, ship plate, bridge plate, boiler plate, container plate, etc. Rolled hard coils: Continuous rolling of hot-rolled pickled coils at room temperature. Hot rolled steel plate products include steel strip (coil) and steel plate cut from it. The steel strip (roll) can be divided into straight rolls and finishing rolls (sub-rolls, flat rolls and slitting rolls).
Available grades, supply standards and uses
| Standard and grade | National standard | | Comparable to foreign standards | | Function and use |
| Material category | Executive standard | Grade | Standard | Grade | Suitable for the manufacture of cold-formed parts
|
Mild Steel Coil
| Q/BQB302 | SPHC | JISG3131 | SPHC |
| SPHD | SPHD |
| SPHE | SPHE |
| SAE1006/SAE1008 | | SAE1006/SAE1008 |
| XG180IF/200IF | XG180IF/200IF |
| general structural steel | GB/T912-1989 | Q195 | JISG3101 | SS330 | For general construction of buildings, bridges, ships, vehicles, etc. |
| Q235B | SS400 |
| SS400 | SS490 |
| ASTMA36 | SS540 |
Due to its high strength, good toughness, easy processing and good weldability and other excellent properties, hot continuous rolled steel sheet products are widely used in ships, automobiles, bridges, construction, machinery, pressure vessels and other manufacturing industries.
Therefore, the demand for HRC is huge.
The allowable deviation of the thickness of the steel plate and steel strip shall comply with the provisions
| Nominal thickness (mm) | Thickness tolerance (mm) | Width direction after slicing | Rolling direction after slicing Thickness deviation (mm) |
| >1.5-2.6 | ±0.10 | ≤0.05 | ≤0.05 |
| >2.6-3.0 | ±0.12 | ≤0.05 | ≤0.05 |
| >3.0-4.0 | -0.17~+0.12 | ≤0.05 | ≤0.05 |
Mechanical properties
| Nominal thickness | Yield strength (Mpa) | Tensile strength (Mpa) | Elongation A50mm% | 180 degree bending test |
| >1.5-2.5 | ≤290 | ≥310 | ≥38 | D=0a |
| >2.5-3.0 | ≤290 | ≥300 | ≥38 | D=0a |
| >3.0-4.0 | ≤290 | ≥300 | ≥40 | D=1/2a |
Hot steel Coil Application
Hot-rolled coil is the raw material for almost all steel products, such as cold-rolled coil, galvanized coil, pre- painted coil, angle steel, H Beam, flat steel, steel pipe, etc.
Delivery photos for reference
About us
Jinan Zunkai Group founded in 2002,with five branch companies and is well-founded.
Our annual sales nearly one billion,about 300000 tons steel.
Our company is located in jinan City,ShanDong Province.
We entered into a strategic partnership with Bao Steel,laiwu Steel,Rizhao Steel,Handan Steel,Anyang Steel,Maanshan Steel and other domestic large steel companies.
Zunkai is the largest steel aluminum and copper supplier in Shandong Provinces,
we also have ourselves raw materials process factory with 100000 Square meter for steel laser cutting,surface treatment and other further processing,and our stock always more than 20000 tons.
Zunkai Group mainly engaged in:aluminum sheet,copper tube,galvalume steel,PPGI,galvanized steel,steel plate,round bar,steel pipe,stainless steel product,angle bar,steel pile,H beam,I beam,angle,Channel flat steel ect.
Our good quality and reliable service will be your best trusted partner.Sincerely wish to building long and regular business with you forever.
Our Cooperation
FAQ
Q: Will the Test Certificate meet EN10204 3.1? A: We will provide Original Mill Test Certificate certified to EN10204 3.1 for products in stock or further processing needed. Q: Once the products received by customer were found not comply with the products or contract demands, what will you do? A: We will compensate the customer for all the loss without any hesitation Q: How long is your delivery time? A: Generally it is 2-5 days if the goods are in stock or it will need 7-20 days if the goods need to be customized Q: Do you provide samples ? Is it free or extra ? A: Yes, we can offer free samples. Q: What is your terms of payment? A: 30% Prepayment and balance see B/L copy or can negotiable.
>>
