Light Duty Lathe Turning Metal Lh6251 Horizontal Cutting Manual Lathe Machine Tool

Product Description

Product Description

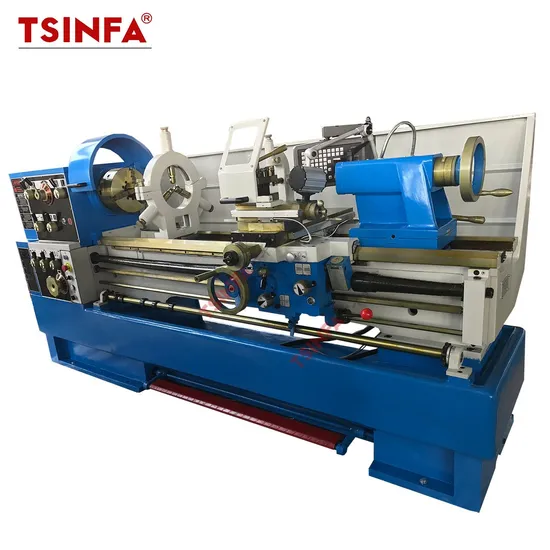

LH6251 series manual engine lathe (gap bed lathe machine), as a versatile horizontal lathe machine, is widely used in the batch processing of variety of shaft and disk part, like the turning inner and outer cylindrical surface, conical surface and other rotating surfaces,turning various metric, imperial, modulus and pitch thread, drilling and pulling oil groove, etc. One of the most important industrial machine tools.
Main Feature:
*The surface guide of the bedways is quenched by supersonic frequency and grinded precisely.
*The headstock gears are quenched and grinded to ensure gear strength to reduce noise.
*Integrated stand keep the machine high work rigidity
*Variable speed model for optional
Product Parameters

SPECIFICATIONS	LH6236	LH6241	LH6251	LH6260
Max.swing over bed	360mm	410mm	510mm	600mm
Max.swing over cross slide	190mm	230mm	330mm	360mm
Max.swing over gap	470MM	570mm	670mm	760mm
Effective length of gap	200mm
Center Distance	750/1000/1500/2000/3000mm
Bed Width	360mm
Spindle hole	52mm
Spindle nose	ISO-C6
Spindle taper	MT6
Spindle speed(Number)	(9steps)40-1400rpm
Max. travel of top slide	95mm
Max. travel of cross slide	200mm
Max.size of toolshank	20*20mm2
Longitudinal feeds range	36kinds 0.0832-4.66mm/r
Cross feeds range	36 kinds 0.048-2.69mm/r
Metric threads range	29kinds 0.25-14mm
Inch threads range	33kinds 2-40inch
Moudle threads range	17kinds 0.5-3.5mπ
Dia.of tailstock sleeve	65mm
Taper of tailstock sleeve	MT4
Max. travel of tailstock	140mm
Main drive motor	4KW	4KW	5.5KW	5.5KW
Coolant pump motor	90W
L*W*H(1000mm)	2430*1130*1750	2430*1130*1750	2430*1130*1750	2430*1130*1750
L*W*H(1500mm)	2930*1130*1750	2930*1130*1750	2930*1130*1750	2930*1130*1750
L*W*H(2000mm)	3430*1130*1750	3430*1130*1750	3430*1130*1750	3430*1130*1750
N.W/G.W(1000mm)	1350/1500kgs	1500/1700kgs	1600/1800kgs	1700/1900kgs
L*W*H(1500mm)	1500/1700kgs	1600/1850kgs	1700/1950kgs	1800/2050kgs
L*W*H(2000mm)	1750/2100kgs	1800/2150kgs	1900/2250kgs	2000/2350kgs

Detailed Photos
Company Profile
Shandong TSINFA CNC Equipment Co., Ltd. was founded in 2005, The registered capital is 20 million yuan. The company has independent import and export rights, and obtained the European quality management council CE certification. The company is located in the south of Shandong province Mozi hometown, Beijing-Shanghai high-speed railway, Beijing-Fuzhou expressway, 104 national highway through the north and south, to the south is Weishan lake, to the north lies mount tai, convenient transportation, industrial development. As a member of China machine tool industry association (CMTBA), passed the ISO 9001:2015 quality management system certification, the company is constantly innovating in the development, relying on the strong economic strength, advanced and sophisticated professional production equipment, strong technical force, to standardize the entire operation of the enterprise management system mode. Products cover metal cutting machine and metal forming machine two categories. Metal cutting machine tools are: CNC machining center, CNC lathe, inclined bed CNC lathe, general lathe, vertical milling machine, horizontal milling machine, universal milling machine, turret milling machine, drilling and milling machine, slotting machine, gouging machine, turning milling complex machining center, etc. The equipment is exported to USA, Poland, Russia, Sri Lanka, Peru, Chile, Saudi Arabia, southeast Asia and Africa and other countries and regions. It is widely used in automobile, motorcycle, textile machinery, hardware products, 3C, construction machinery, home appliances, railway, ship, other industries. We adheres to the quality of integrity, ensures that every equipment is qualified to leave the factory, to ensure that they can do their best for employees and customers.
FAQ
Q1:How can l choose the most suitable machines ?Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .Q2: What's your main products of your company?Products cover metal cutting machine and metal forming machine two categories. Metal cuttinging machine tools are: CNC machining center, CNC lathe, manual lathe, manual milling, sawing machine, etc. Metal forming machine: hydraulic press machine.Q3: Where is our factory located? How can l visit there?Our factory is located in Tengzhou City , Shandong Province, 277500 China. You are warmly welcomed to visit us.You are warmly welcomed to visit us.Q4. How do you transport it?Provide Transportation Solution DDP/CIF/FOB/FCAQ5: What's the Payment Terms ?T/T ,30% initial payment when order,70% balance payment before shipment .Q6: What's the MoQ?1 set .(Only some low cost machines will be more than 1 set )We want to know:
1. We strongly suggest you to tell us size, material of your workpiece for our evaluation if possible,
better to send us workpiece drawing, so that we can recommend you most suitable model!
2. lf need ClF Price, please kindly tell us the port of destination.

---
