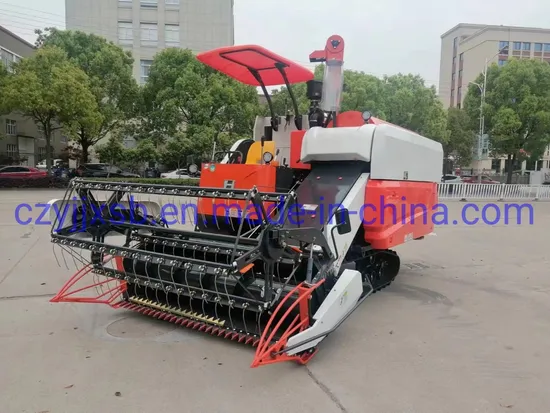

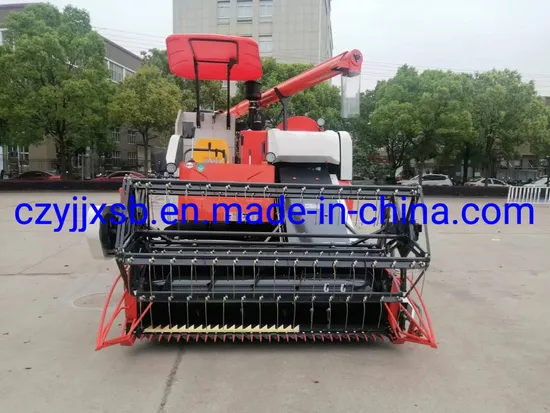

4LZ-6.0Z Combine Harvester, Rice Harvester,Wheat Harvester,Corn Harvester,Rapeseed Harvester,Soybean Harvester
4LZ-6.0Z Combine Harvester can harvest rice,wheat,corn,Rapeseed,Soybean.
Use 2.2m wide cutting header, big chasiss 550*90*56 rubber track,Big grain tank.can working in muddy field
| Model | 4LZ-6.0Z |
| Feeding Capacity (KG/s) | 6 |
| Weight (KGS) | 3800 |
| Main Standard Configuration | |
| Working Dimension L*W*H (mm) | 5150*2620*3030 |
| Ground Clearance(mm) | 360 |
| Travelling Speed(km/h) | 0.9-6.5 |
| Work Efficiency (Ha./Hr) | 0.5-0.7 |
| Total Loss | Less than 2.0% |
| Total Imputity | Less than 1.5% |
| Total Breakage | Less than 1.5% |
| Diesel Engine | |
| Model | Changchai 4G33-TC |
| Type | Vertical, Water-cooling, 4*4 strokes Direct Inject, Turbocharger |
| Rated Power/Rotating Speed | 102HP/2700rpm |
| Fuel Consumption(kg/hm2) | 17~29 |
| Fuel Capacity (L) | 130 |
| Gear Box& HST | |
| Gear Box | Hydraulic Gear Box ZKB90 |
| HST | 50CC |
| Rubber Track | |
| Size (mm) | 550mm*56*90 mm |
| Length of Ground Contact (mm) | 1810mm |
| Average Contact Pressure(kpa[kgf]/cm2) | ≤18Kpa |
| Header Platform &Conveyor Trough | |
| Grain Lifter | Divider |
| Cut Width | 2200mm |
| Size Reel Bat Dia. × Length (mm) | ∮900×2028mm |
| Adjust means of Reel Bat | Constant speed by hydraulic control |
| Conveyor Trough | Widen Conveyor Trough with Reverse Lever |
| Thresher& Separating Unit | |
| Threshing Type | Axial Flow, Beat Bar |
| Thresher Rotor | ∮620*2000 |
| Rotating Speed | 662/732 |
| Air Blow | Eccentric Fan, 3 Blow Forces |
| Area of Sieves (Low and Up Sieves) (m2) | 1.645 |
| Grain Tank | |
| Augers | Seed Augers, Impurity Augers, Unload Augers |
| Grain Tank | 1.6CBM |
| Grain Unloading | 360 Degrees Discharging Pipe |
| Others | |
| Cabin/Sun-roof | Sun-roof |
| Alarms | Water Temperature, Battery, Oil, Grain Tank, Jam of 2# Auger |
| Crops | Rice ,Wheat ,Rapeseed |
| Optional | WITH CORN KITS |
