Sand Cleaning Machine for Faucet Hardware Castings

Product Description

Product Description

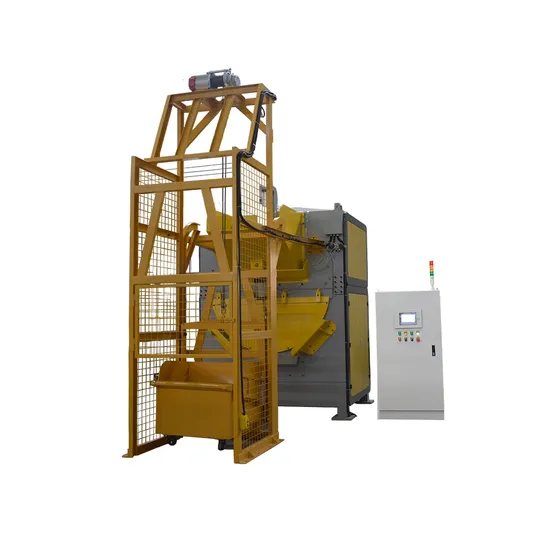

Drum sand cleaning machine
The equipment is mainly composed of a hopper lift, a sand cleaning drum, a vibrating screen and a conveyor belt. Put the casting into the material truck,lift and pour the material into the sand cleaning drum, and close the gate. Spiral blades are set in the drum to make the casting fully roll and collide in the drum. According to the different products, after rolling for about 7-10 minutes, the fine sand and metal fragments are discharged to the vibrating screen, and then through the vibrating screen, the fine sand falls on the conveyor skin for output, and the metal fragments are recycled. The drum is reversed, and the hatch is opened to discharge the casting to complete sand cleaning.

No	Content		Main Parameter	Note
1	Roller sand remover	Roller Diameter	1450mm
		Loading weight (easy to roll parts)	About 750kg
		Roll speed	5r/min
		Motor power	7.5Kw
		Cleaning time per time (adjustable)	3-15min
		Feeding method	Pit free trailer lifting
		Unloading mode	Drum reversal
		Dust removal power	5.5kw
2	Charging elevator	Lifting height	2.5m
3	Vibrating screen	Vibration motor power	0.37kw 5000N
4	Belt conveyor	Belt width	500mm	Optional
		Motor power	1.5kw
		Tape speed	0.5M/S
5	Size	7000*2070*3100mm

Detailed Photos
Packaging & Shipping
Company Profile Delin Intelligent Technology Co., Ltd1.We are one manufacturer of metal foundry machinery and CNC machining machinery in China.2.We are production automatic molding machine, gravity pressure casting machine, compound CNC polishing machine , SPM machine(compound CNC drilling machine,CNC machining center etc.), furnace, core shooting machine, mixing sand machine and so on.3.Our machines are extensively used in producing and machining foundry parts,metal castings,plumbing fittings, sanitary ware,car spare parts,valve for brass, aluminium, zinc, iron cast production line and others please contact us!4.We have professional technical support and after sale service. With a whole line foundry machines,good quality, reasonable prices and stylish designs.
FAQ Q1. Where is your factory located ? How can I visit it ?A : Our factory is located in Quanzhou city,Fujian province,China. You can fly to Jinjiang or Xiamen air port, we will pick you up.
Q2. Are you produce machine's specific parameters according to the samples?
A: Yes, we produce the machine you want by your samples or technical drawings. Usually one machine have different molds and fixtures like metal polishing machine,die casting machine.
Q3. What is your sample service?
A: We can supply the sample testing which client want to produce if we have ready machine in stock, but the customers have to pay the sample shipping cost.Q4. What is your MOQ of your machine?
A: Normally our MOQ is 1 set.
Q5. Do you test all your machine before delivery?
A: Yes, we have 100% test before delivery.
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

---
