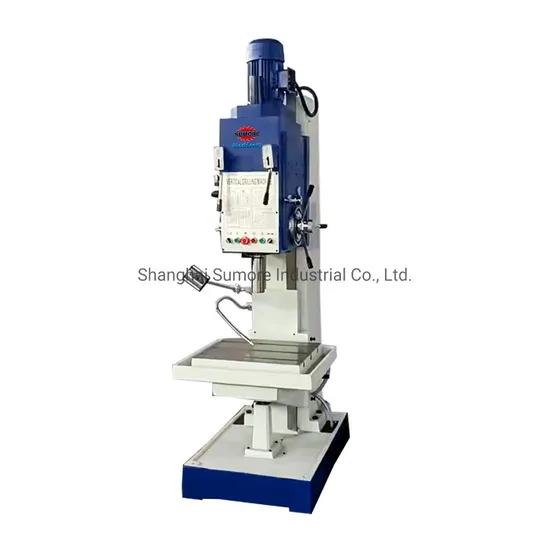

Sumore Z5140b 40mm Borehole Diameter Vertical Metal Drilling Machine Sp5140b
US$3,820.00
1 set
(MOQ)
Basic Info.
Model NO.
SP5140B
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Certification
CE
Condition
New
Drilling Capacity
40mm
Maximum Feed Resistance N of Main Shaft
1600
Spindle Travel
360mm
Maximum Spindle Torque N.M
350
Main Motor Power Kw
3
Conicity of Main Cone Hole No
4
Spindle Speed r.p.m
31.5-1400(12 Steps)
Table Size mm
480*560
Machine Tool Weight Kg
1250
Outline Dimension mm
1050*710*2540
Transport Package
Plywood Box
Specification
40mm
Trademark
SUMORE
HS Code
8458912090
Production Capacity
1000
Product Description
Product Description SUMORE Z5140B radial borehole vertical metal column drilling and milling machine SP5140B 40mm borehole diameter drilling machine * Robust Construction & Stable Performance * Brushless Motor & Variable Spindle Speed * Fine & Smooth Feeding Movement on Every Directions * High Precision for Model Engineering * Changable Table Length for Different Workpieces * Optional Spindle Speed & Cutting Depth Digital Readout * Optional Automatic Longitudinal Feeder Product Parameters
Main technical parameters
SP5140B
Maximum borehole diameter mm
40
Maximum Feed Resistance N of Main Shaft
1600
Maximum spindle torque N.m
350
Main motor power kw
3
Conicity of main cone hole NO
4
Spindle speed r.p.m
31.5-1400(12 steps)
Feed per spindle revolution mm/rev
0.056-1.80(9 steps)
Spindle stroke mm
250
Spindle box stroke mm
200
Distance from spindle centerline to pillar mm
335
Longitudinal and transverse travel mm of worktable
no
Vertical travel mm of worktable
300
Maximum distance from end face of spindle to worktable mm
750
Table size mm
480*560
Machine tool weight kg
1250
Outline dimension mm
1050*710*2540
Company Profile As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years. We have got the certificates of CE ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world. Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs. Hope to cooperate with you!
