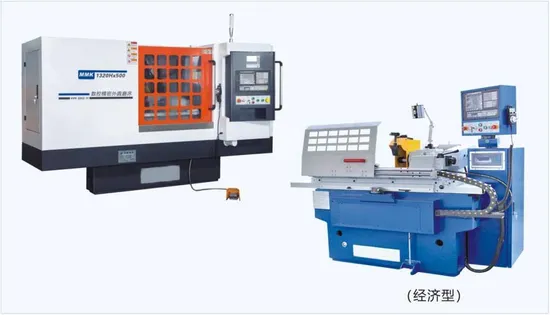

Mk1320h Mke1320h, CNC Cylindrical Grinding Machine

Product Description

Product Description
Main functions and features
• The CNC cylindrical grinder is suitable for batch production ofcylindrical parts grinding with high performance-to-price ratio.
• The electrical system is controlled by HNC-180GCE and the executive system is driven by the CNC servo driver and servo motor. Worktable longitudinal travel and wheelhead cross traverse which with the high infeed accuracy are realized by the servo motors via the ball screw transmission. With the touch screen and human-machine interface, the machine is easy to operate. With other systems and configured online automatic measuring instrument can also be based on user needs.
• The machine is simple and easy to operate. After simple training, it can be operated easily. By setting the parameter of longitudinal grinding or plunge grinding via the touch screen, an auto-grinding for the different workpiece is realized. With the function of worktable trip-stop, the machine can grind more than one journals of one workpiece automatically. The process parameter of more than one journals can be set discretionary for long grinding of plunge grinding.
• With the functionofwheeldressingandcompensation automatically.
• Wheelhead spindle is supported by three bushing hydro-dynamic bearing, and high precision hydro dynamic-static bearing is also available for the user.
• Timing provision of lubrication for machine moving parts according to program designing. Automatic lubrication of all moving parts. Tailstock has two ways:hydraulic and manual.
Product Parameters

Description	(unit)	MK1320H×500 MKE1320H×500	MK1320H×800 MKE1320H×800
Dia to be ground	(mm)	φ8~φ200	φ8~φ200
Max,length to be guound	(mm)	500	800
Center height	(mm)	135	135
Distance between centers	(mm)	500	800
Headstock center	()	4#	4#
Tailstock center	()	4#	4#
Max.workpiece weight to be ground	(kg)	50	50
Wheel size	(mm)	φ400×50×φ203	φ400×50xφ203
Wheel peripheral speed	(m/s)	38(45m/s)	38(45m/s)
Wheel spindle rotation speed	(r/min)	1815/2150	1815/2150
×Min.pulse amount in X-axis	(mm)	0.001	0.001
ZMin.pulse amount in Z-axis	(mm)	0.001	0.001
Total motor power	(kw)	10.825	10.825
Longitudinal servo motor	(kw)	.6(6Nm)	1.6(6Nm)
Traverse servo motor	(kw)	1.6(6Nm)	1.6(6Nm)
