Zx6350c Gear Driving Vertical Drilling & Milling Machine

Product Description

ZX6350C Gear Driving Vertical Drilling & Milling Machine

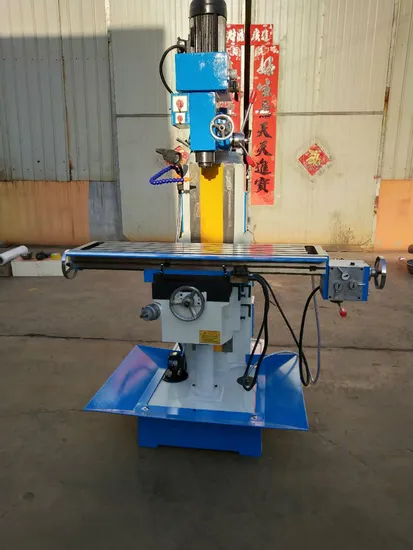

Product picture:
Vertical Drilling Milling Machine Performance:
1.Work Table Surface and Guide ways Hardened by Supersonic Frequency Quenching (depth 2-4MM)
2.Work Table Made by HT200-250 High Strength Cast Iron
3. With the horizontal milling function
4.Plastic Guide Way Increase The Precision And Service Life
5.Three Axis can Fix (X/Y/Z) Automatically Feed .
Vertical Drilling Milling Machine Standard Accessories:
1.Milling chuck sets
2.Reducing sleeve 7:24ISO50/MS4 and 40/MS4
3.Hexagonal Spaner 5 and 10
4.Stay wrench S21-24 and S27-30
5.Horizontal milling cutter arbor 7:24 ISO50 27
6.Horizontal milling cutter arbor 40
7.Draw bar M24 (on the machine)and M16
8.Work lamp
9. Cooling systerm
10.Universal milling head XC63T4A
Optional Accessories:
1.X/Y power feed
2.Z axis lifting motor
3.three axis sino dro
4.QH200 flat vice
Vertical Drilling Milling Machine Technical Parameters:

Specifications	Unit	ZX6350C
Table size	mm	1120x280
T Slot number/width/pitch	mm	5/14/50
Longitudinal travel	mm	630
Cross travel	mm	280
Vertical travel	mm	430
Vertical milling capacity	mm	32
Face milling capacity	mm	100
Drilling capacity	mm	50
Longitudinal feeds range	Mm/min	24-720
Cross feeds range	Mm/min	-
Vertical milling spindle travel	mm	120
Spindle nose to table surface	mm	140-570
Travel of movable arm	mm	360
Vertical milling spindle taper		MT4
Horizontal milling spindle taper		MT4
Vertical milling spindle speeds	R/min	115-1750 ,8 steps
Horizontal milling spindle speeds	R/min	32-1320 ,12 steps
Vertical milling motor	kw	1.5/0.85
Main motor	kw	2.0/2.4
Overall dimensions	mm	1400x1300x2100
Net weight	Kg	1300

Vertical Drilling Milling Machine Details:
Company and Certification Information:
Shandong Schuler CNC Machinery Co., Ltd. is a professional manufacturer of vertical machining center, high speed machining center, gantry machining center, vertical milling machine, universal milling machine, turret milling machine, lathe, CNC lathe, radial rocker drill, metal band sawing machine. enterprise. The company is located in Tengzhou City, Shandong Province, with convenient transportation and industrial intensive. The company integrates research, development, design, manufacturing, sales, installation and maintenance of CNC machine tools. With high-level production equipment technology and excellent, high-quality staff, providing high-quality product quality and service, the products sell well in domestic and foreign markets.
Zhongzheng is a person, and integrity is the foundation. It is the aim of Schuler people. It is consistent with the words and deeds, and it is always the commitment of Schuler people to our customers.
Schuler is willing to cooperate with every customer and peers to win the best for the development of CNC machinery industry. We will return the society with professional and perfect technical support services.
The company's main products include CNC machining center, industrial CNC milling machine and gantry machining center. , metal band sawing machine, CNC lathe, universal turret milling machine, ordinary milling machine, punching machine and other products, customers are welcome to contact us, we will provide you with quality products and satisfactory service.
Vertical Drilling Milling Machine Package delivery:
