Full-Servo Under Pad Machine with Ce Certificate (JWC-CFD-SV)

Product Description

Full-Servo Under Pad Machine with Ce Certificate (JWC-CFD-SV)
Product Description

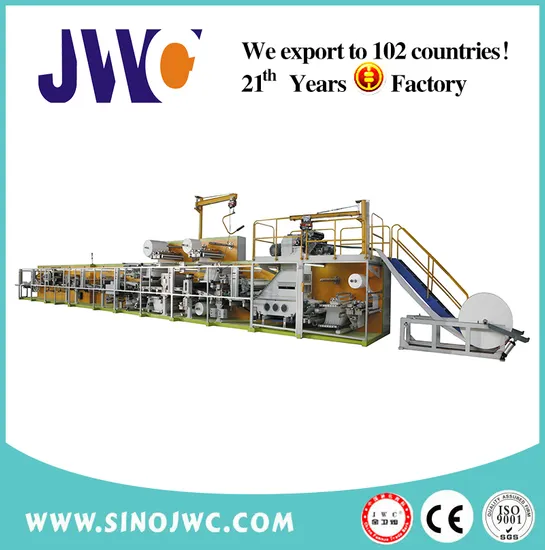

This Disposable Puppy Pad Machine includes main machine, glue applicators, packing system and other accessory equipment including air compressor, vision detection system and metal detection machine etc. This Machine can produce 5 layers under pad. This production line can realize 100% full automatic control.

1. Machine frame Reasonably solid square steel frame 2. Crusher system 3. Fluff forming system 4. SAP feeding system 5. Bottom tissue feeding, roll diameter φ800mm 6. Upper tissue, roll diameter φ800mm 7. Back sheet PE film feeding, roll diameter φ600mm 8. Top sheet hydrophilic non-woven feeding, roll diameter φ800mm

Product Parameters

1	Design speed	300 meters/min
2	Stable working speed	280 meters/min (treated pulp, fluff GSM 40-80/M2)
3	Qualified rate	97% exclude the wastage due to the glue applicators and materials splicing joint
4	Efficiency	85%
5	installation capacity	340KW
7	Electricity	380V 5%50HZ
8	Wire	Three phases four wires 380V/50Hz (ground wire)
9	Air pressure	0.6Mpa
10	Total weight	About 80tons
11	Machine size	24*8*4.5 M(L*W*H)
12	Working space	30*11*6 M (L*W*H)
13	Machine color	Rice white ,can be changed by order
14	Product size	Width: 450-600mm to be customized, length is 450-1500mm to be customized
15	Containers	4X40HQ

Features at a glance

Auto lubricating System Auto lubricating for the cutter units ,can make the machine have better cutting effect and extend the life of cutter system

Human-Machine Interface Working speed(piece/min), single producing output, monthly output,annual output, counting quantity and products' passing rate can show on the screen

Materials automatic feeding System Main raw materials adopt auto unwinding, auto splicing, tension control, auto FIFE web guider functions to guarantee the precise and stablility

	Name	Brand	Origin
1	Servo motor	Mitsubishi	Japan
2	Auto web guider	FIFE	USA
3	Touchable screen	Banner	USA
4	PLC controlling system	Mitsubishi	Japan
5	Sensor	Banner	USA
6	Safety production	Shneider	France
8	Cutter raw material	M7	USA
9	Gear according to usage	BEM/NSK/SKF	Germany/Japan/Sweden
10	Timing belt	Optibelt or Gates	Germany/USA
11	Low voltage electronic	Shneider	France
13	Temperature controlling system	Omron	Japan
15	Pressure regulating valve	Airtac	Chinese Taiwan
16	Pneumatic element	Airtac	Chinese Taiwan
17	Solenoid valve	Airtac	Chinese Taiwan
18	Moisture separator	Airtac	Chinese Taiwan
19	Automatic fault alarm	Mitsubishi	Japan
