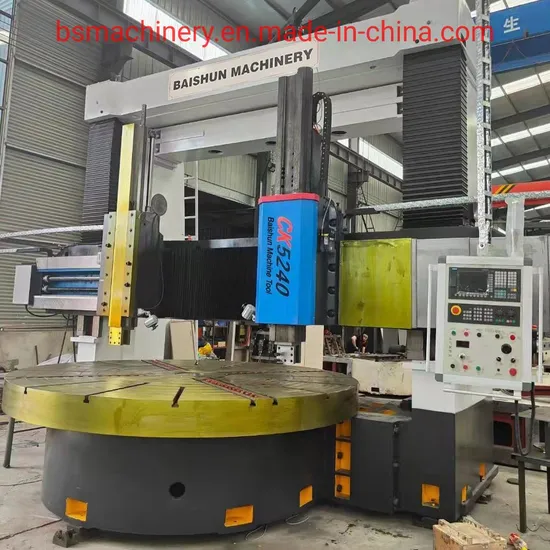

Heavy Ck5240 Double Column Vtl Metal Turning Torno CNC Vertical Lathe Machine

Product Description

Supply Ability
50 Set/Sets per month cnc vertical lathe machine

Packaging & Delivery
For the cnc vertical lathe machine, wrapped by plastic film with iron pallet and then carefully loaded into 40GP container, according to your order quantity.
Product Description
CNC Vertical lathe is a kind of large mechanical equipment, which is used to process large and heavy workpieces with large radial size and relatively small axial size and complex shape. Such as a cylindrical surface, an end surface, a conical surface, a cylindrical hole, a conical hole and the like of various discs, wheels and sleeve workpieces, and can also be processed by means of additional devices such as running threads, spherical surface turning, imitating machining, grinding and the like; compared with a horizontal lathe, the workpieces are clamped in the clamping decoration of the horizontal lathe, while the main shaft axis of a vertical lathe is in a vertical layout, and the table surface of a worktable is in a horizontal plane; Therefore, the clamping and alignment of the workpiece are more convenient. This arrangement reduces the load on the spindle and bearings, so the vertical lathe can maintain its working accuracy for a long time.
1.Conventional single column vertical lathe

No.	Name	Unit	C516	C518	C5110	C5112	C5116	C5120
1	Max. turning diameter	mm	630	800	1000	1250	1600	2000
2	Table diameter	mm	600	720	900	1000	1400	1800
3	Max.height of workpiece	mm	600	800	800	1000	1200	1250
4	Max.weight of workpiece	T	0.8	1.2	2	3.2	5	8
5	Horizontal travel of tool post	mm	500	570	670	700	915	1115
6	Vertical travel of tool post	mm	650	650	650	650	800	800
7	Main motor power	KW	11	22	22	22	30	30
8	Overall size of machine	mm	1750*1230*2580	2080*2621*3515	2187*2711*3515	2460*2330*3430	2886*2672*3980	3200*2800*4000
9	Machine weight	T	4	6	7	8.5	14	17

2.Conventional double column vertical lathe

No.	Name	Unit	C5225	C5231	CQ5240	C5240	C5250	C5263
1	Max.turning diameter	mm	2500	3150	4000	4000	5000	6300
2	Table diameter	mm	2250	2830	2830	3200	4500	6000
3	Max.height of workpiece	mm	1600	2000	2000	2500	3150	3150
4	Max.weight of workpiece	T	10	10	10	32	50	50
5	Horizontal travel of tool post	mm	1400	1735	2150	2160	50~2765	3415
6	Vertical travel of tool post	mm	1250	1250	1250	1250	1600	1600
7	Power of main motor	mm	55	55	55	55	75	90
8	Overall size of machine	KW	5180*4560*4680	5520*6960*5725	6780*4850*5080	6870*5200*5850	12960×6781×8865	14260*6850*8865
9	Machine weight	T	33	38	39	48	100	110

3. CNC Single Column Vertical Lathe Machine

Model	CK518	CK5112Q	CK5112A	CK5116Q	CK5116A	CK5120A	CK5126A
Max.turning diameter(mm)	800	1200	1200	1600	1600	2000	2600
Working table diameter (mm)	700	1000	1000	1400	1400	1800	2200
Max. height of workpiece (mm)	800	1000	1000	1200	1200	1250	1400
Max. weight of work-piece (kg)	1500	1500	3200	3200	5000	8000	8000
Range of worktable rotation speed (rpm)	30-260	20-180	6.3-200	15-160	5-160	3.2-100	2.2-70
Feeding series	stepless	stepless	stepless	stepless	stepless	stepless	stepless
Range of tool rest feed (mm/min)	0.25-90	0.25-90	0.8-86	0.25-90	0.8-86	0.8-86	0.8-86
Cross beam travel (mm)	500	1000	650	1200	650	890	1090
Horizontal travel of tool rest (mm)	500	700	700	900	916	1115	1400
Vertical travel of tool rest (mm)	450	500	650	750	800	800	800
Size of section of cutter bar (mm)	30*40	30*40	30*40	30*40	30*40	30*40	30*40
Main motor power (kw)	11	15	22	15	30	30	30

CNC Double Column Vertical Lathe Machine

Specifications	Unit	CK5225	CK5231	CK5240Q	CK5240
Max.turning diameter	mm	2500	3150	4000	4000
Max. height of work piece	mm	1600/2000/2500	1600/2000/2500	1600/2000/2500	1600/2000/2500
Max. weight of work piece	T	10/20	10/20	10/20	32
Worktable diameter	mm	2250	2830	2830/3150	3200/3600
Range of table speeds	r/min	2-63	2-63	2-63	2-63
Steps		16	16	16	16
Max torque of work table	KN.m	63	63	63	100
Rapid traverse of rail head	mm/min	4000	4000	4000	4000
Ram vertical travel of right railhead	Kn	35	35	35	40
Ram vertical travel of left railhead	kn	30	30	30	30
Range cutting force of right railhead	mm/min	1-50	1-50	1-50	1-50
Range cutting force of right railhead	mm/min	0.1-1000	0.1-1000	0.1-1000	0.1-1000
Travel of arm	mm	1000	1000	1000	1250
Section of arm	mm	255×200	255×200	255×200	240×240
Swivel of left and right railhead	°	±30°	±30°	±30°	±30°
Section of tool	mm	40×50	40×50	40×50	50×50
Power of main motor	Kw	55	55	55	75
Overall dimensions	cm	569×470×480/520	605×440×493/533	690×510×480/520	690×510×480/520

Detailed Photos

Processed Workpiece Display
Main Product
Workshop Display
