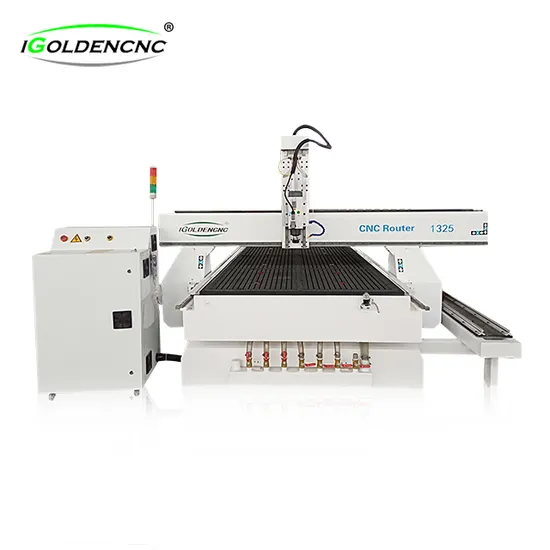

Factory Quality 4 Axis Woodworking CNC Engraving Router Machine with Side Rotary

US$4,000.00
1 set
US$3,900.00
2+ set

Basic Info.

Model NO.
woodworking cnc engraving router
CNC or Not
CNC
Voltage
380V
Applicable Industries
Building Material Shops, Home Use, Retail, Energy
After-Sales Service Provided
Engineers Available to Service Machinery Overseas,
Control System
DSP
Working Area
1300X2500mm
Inverter
Fuling
Transmission
X,Y-Rack Pinion ,Z-Ball Screw
Driving System
Stepper Motor and Leadshine Driver
Guide Rail
Imported Taiwan Hiwin Square Guide Rail
Table
Vacuum and T-Slot Table
Collector
Double Bags Collector
Lubrication System
Yes
Transport Package
Wooden Case
Trademark
IGOLDEN
Origin
China
Production Capacity
500

Product Description

factory quality 4 axis woodworking cnc engraving router machine with side rotary
Item
Description
Option
Model
IGR-1325 with rotary
 Customize sizes available
Work area
1300x2500x200mm
Table size
1485x3000mm
Transmission
 X/Y rack and pinion drive, Z ball screw drive
Motor
 Stepper motor
Delta/Yaskawa/Panasonic servo
Spindle
 Power
4.5kw
 4.5kw/5.5kw/6kw
Cooling
Air cooling
air cooling
speed
 0-18000rpm
Table type
 Vacuum table
 T-slot
Travel Speed
 0-25m/min
working speed
 0-15m/min
Reposition Accuracy
 0.005mm
Control System
 Nc-studio
 DSP / Mach3 / Syntec
Command code
G code,HPGL,U00,mmg,plt,

Design software
 ARTCAM/TYPE3/ CAD/CAM

Working Voltage
AC380v 3phase/50HZ
Temperature
0-45ºC
