Product Description
Product Description
Products Introduction
Function.Bess((Blowout Emergency Safety System) is to enable the driver to control the vehicle direction and brake safely in case of tire blowout during driving, so as to avoid accidents. In the high-speed tire blowout accident, the vehicle out of control is the biggest "killer" causing casualties. The application of Bess greatly reduces the risk of high-speed tire blowout, which is a high-risk situation that almost 100% of casualties are caused.
Automobile safety technology for saving life .Bess system can ensure that the vehicle can drive safely and controllable for a certain distance after serious or even complete tire pressure loss.
Working principle
Bess has no requirements on road conditions and speed. No matter on general highways, expressways and cross-country roads, or even 45 degree slopes, ditches and mudslides, the speed of 60 km / h is equally effective.
Fill in the groove - so that the tire does not come off the rim.

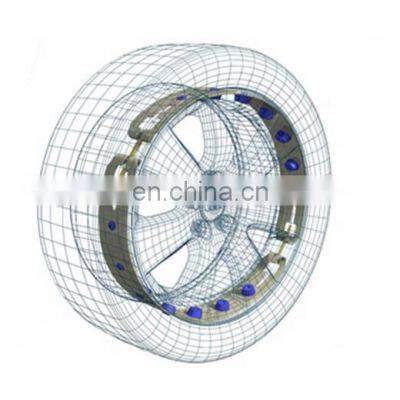

Each wheel hub has a groove. The purpose of the groove is to remove and install the tire, and install the "Bess automobile tire blowout emergency safety system", which is consistent with the radius of the hub groove, so that the tire will not leave the wheel hub.
Tire rubber pad contact with the ground - direction is not out of control, braking is not out of control.
After the tire burst, due to the formation of a 2-5 cm rubber pad between the height of Bess products and the thickness of the tire itself, the rubber pad will contact the ground, and the two sides of the rim will not contact with the ground to cause rollover.
Continuous performance - drive to a safe place to change tires after a flat tire.
Bess will be fixed on the rim and will not fall off. Therefore, it forms a layer of rubber pad. It can continue to run after a tire burst. The driving distance can be up to 3 ~ 5 km (depending on different models). It provides you with a safe place to drive without losing control.
Details Images
Part name
| Bess(Blowout Emergency Safety System )
|
Function
| Not out of control after a tire blowout.
|
Net weight
| 1.6 kg(light truck)~2.8 kg(heavy truck)±0.2
|
Product model
| Passenger car series: 14 inch to 21 inch diameter wheel hub. Heavy truck series: wheel hub with diameter R 22.5 series.
Light truck series: diameter R 19.5 series wheel hub.
Bus series: wheel hub with diameter R 22.5 series.
|
1.Annular support steel strip.
Made of alloy material.
2.Septal occlusive device.
Light truck: made of nylon material with high temperature resistance and poor compressibility.Medium and heavy truck: made of solid steel.
3.Connection adjustment device.
High tensile series bolts and reliable anti slip technology are adopted.
4.Connection adjustment device.
It adopts high tensile hook connection, which is used to bypass the TPMS system of the original vehicle without changing the accessories of the original vehicle. The perfect combination meets the design requirements of tire rim.
Heavy truck (aluminum alloy) Heavy truck / Coach Light truck Passenger car
Applicable models
Plastic bead steel strip.The plastic bead steel belt is mainly made of nylon material with high temperature resistance and poor compressibility, which is mainly used for vehicles with light load, such as passenger cars, school buses and light buses.
Steel ball steel strip.Steel ball steel belt is mainly used for vehicles with large bearing capacity. In case of danger, the steel ball is rigid and can bear greater pressure value, so as to ensure that the tire will have greater resistance to gravity and provide better continuous mileage in case of tire burst. It is suitable for vehicles with heavy load, such as medium heavy truck and dangerous chemicals vehicle series.
Disassembly Tool
Bess T 104 Disassembly Tool .It is used for disassembly and assembly of Bess system, with net weight of 5.7 kg ± 0.5. It is suitable for passenger cars, buses and heavy truck series.To be purchased separately
