Rotovap Extractor Distillation Vacuum Laboratory Rotary Evaporator

Product Details

Product Description

Product Description

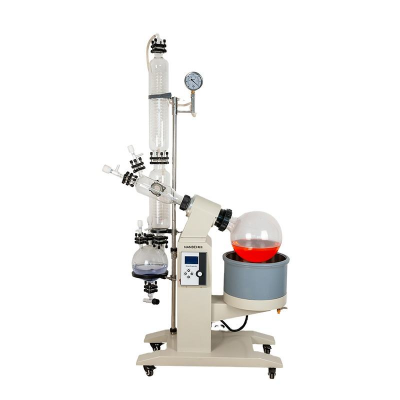

Rotovap Extractor Distillation Vacuum Laboratory Rotary Evaporator
The rotary evaporator is the necessary basic instrument for chemical industry, institutions of higher learning and scientific research laboratory and other units, it is the main means for manufacturing and analyzing experiments
when they do extraction and concentration.
Specification
Parameter For 2L 3L 5L Rotary Evaporator

Model	2L	3L	5L
Glass meterial	GG-17	GG-17	GG-17
Holder material	Stainless steel	Stainless steel	Stainless steel
Pot shell Material	aluminium alloy 270*270*195mm	aluminium alloy 270*296*240mm	aluminium alloy 310*320*240mm
Pot bravery	Stainless steel 250*140mm	Stainless steel 255*170mm	Stainless steel 280*170mm
Plate size	280*330mm	350*330mm	350*330mm
Evaporator flask	2L flange mouth:Φ50mm	3L flange mouth:Φ50mm	5L flange mouth:Φ50mm
Vacuum degree	0.098Mpa	0.098Mpa	0.098Mpa
Rotary speed	0-120RPM	0-120RPM	0-120RPM
Rotary power	30W	40W	40W
Heating power	1.5KW	2KW	2KW
Heating temp.	0-400C	0-400C	0-400C
Temp. accuracy	-1	-1	-1
Lifting stroke	120mm	120mm	120mm
Voltage	220/110V 50/60HZ	220/110V 50/60HZ	220/110V 50/60HZ
Packing size (mm)	590*460*460	1000*460*450	1040*620*410
Packing weight	21kg	38kg	38kg

Parameter For 10L 20L 30L Rotary Evaporator

Model	10L	20L	30L
Glass meterial	GG-17	GG-17	GG-17
Holder material	Stainless steel	Stainless steel	Stainless steel
Pot shell Material	Spray anti-corrosion 490*430*540mm	Spray anti-corrosion 630*534*638mm	Spray anti-corrosion 710*620*700mm
Plate size	474*474mm	350*330mm	350*330mm
Evaporator flask	10L flange mouth:Φ95mm	20L flange mouth:Φ95mm	30L flange mouth:Φ125mm
Collect flask	5L flange mouth:Φ50mm	10L flange mouth:Φ60mm	20L flange mouth:Φ60mm
Vacuum degree	0.098Mpa	0.098Mpa	0.098Mpa
Rotary speed	0-110RPM	0-110RPM	0-110RPM
Rotary power	120W	120W	180W
Heating power	3KW	5KW	8KW
Heating temp.	0-400C	0-400C	0-400C
Temp. accuracy	±1	±1	±1
Lifting stroke	180mm	180mm	180mm
Voltage	220V/50HZ	220V/50HZ	220V/50HZ
Dimension (mm)	970*480*1950	1170*540*2200	1520*620*2470
Packing weight	100kg	123kg	170kg

Parameter For 50L 100L Rotary Evaporator

Model	50L	100L
Glass meterial	GG-17	GG-17
Holder material	Stainless steel	Stainless steel
Pot shell Material	Spray anti-corrosion 710*620*700mm	Spray anti-corrosion 820*820mm
Pot bravery	Stainless steel 550*320mm	Stainless steel 795*330mm
Plate size	804*574mm	1600*830mm
Evaporator flask	50L flange mouth:Φ125mm	100L flange mouth:Φ180mm
Vacuum degree	0.098Mpa	0.098Mpa
Rotary speed	0-110RPM	0-110RPM
Rotary power	180W 220V/50HZ	400W 220V/50HZ
Heating power	8KW 380V/50HZ	12KW 380V/50HZ
Heating temp.	0-400C	0-400C
Temp. accuracy	±1	±1
Lifting stroke	180mm	180mm
Dimension (mm)	1520*620*2470	1700*850*2600
Packing weight	170kg	400kg

---
